46" BULLARD DYNATROL VERTICAL TURRET LATHE   Our stock number: 47289

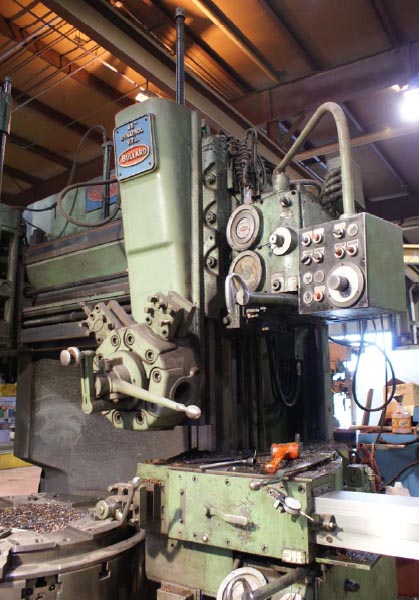

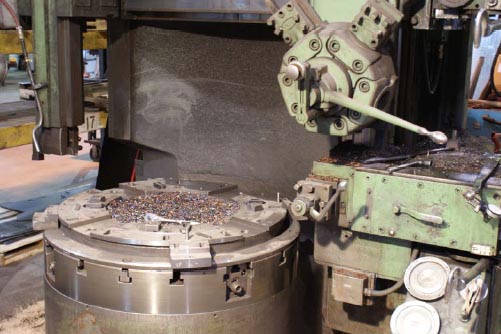

46 BULLARD DYNATROL VERTICAL TURRET LATHE

Click on picture below for larger version
46 BULLARD DYNATROL VERTICAL TURRET LATHE46 BULLARD DYNATROL VERTICAL TURRET LATHE46 BULLARD DYNATROL VERTICAL TURRET LATHE

AGE: 1974

SPECIFICATIONS:

Table Size: 46"
Max. Swing @ Side Head: 52"
Max. Height Under Rail: 36"
Turret Stroke: 36"
Table Speed: 9 - 313 RPM
Feed, Low: .001 - .050
Feed, High: .040 - .250

EQUIPPED WITH: (2) Vertical Heads (1 w/5 Position Turret)
(1) Side Head
4-Jaw Hydraulic Chuck @ Low (600 PSI) & High

(1200 PSI) Pressure

Motor Data: 70 HP, 480/3/60 - Table Drive Motor

Weight: 45,000 Lbs.

At Location.................................................
**PHOTO AVAILABLE
