AGE: 1978
SPECIFICATIONS:
Material: Hot Rolled & Cold Rolled Steel
Coil Weight, Max.: 40,000 Lb. Entry & Exit
Coil Width, Max.: 72" Nominal
Coil Dia., Max.: 72"
Coil I.D.: 16" to 24" Entry
20" to 24" Exit
Stock Thickness, Max.: 0.006" to 0.250"
Shear Strength, Max.: 50,000 PSI
Yield Strength, Max.: 40,000 PSI
Direction Of Travel: Right To Left
Line Speed: 200/600/950 FPM @ 72" Coil O.D.
Electrics: 460/60/3
CONSISTING OF:
Model CLC 40 Entry Coil Car: Above Floor Type,
Self-Contained Hydraulics

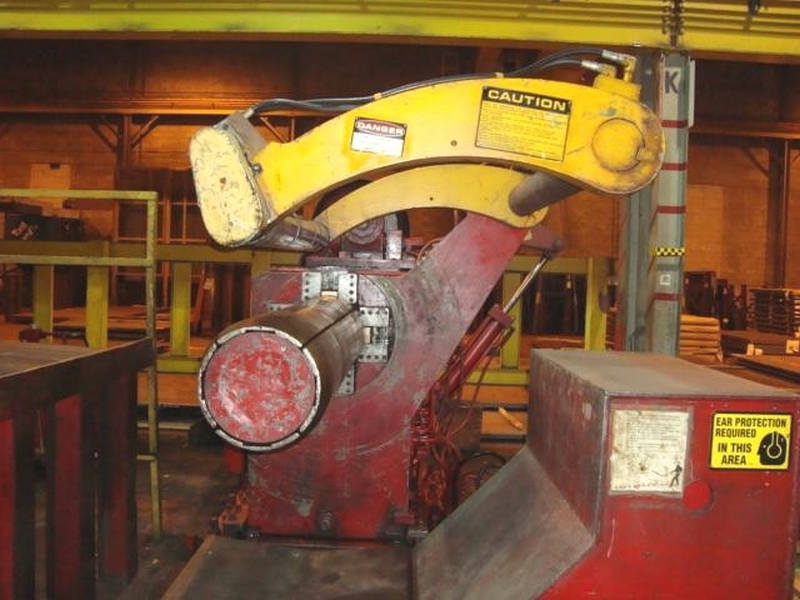

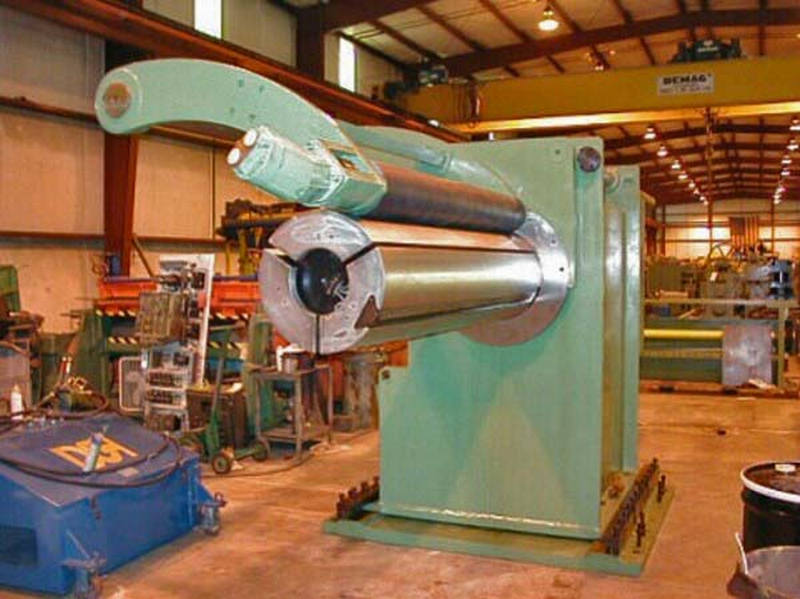

Model CPRS 72-40 Uncoiler: 16" to 24" Coil I.D. Range,
Pade For 30" I.D., Hydraulic Expansion, AC Motor
Threading Drive, Wichita Brake, Powered Holddown
Roll, Sliding Base, 164" L x 90" W x 89" High
Overall Size
Peeler Table
Entry Pinch Rolls: Entry Hydraulic Crop Shear, Entry Side
Guides, 121" L x 60" W x 94" High Overall Size

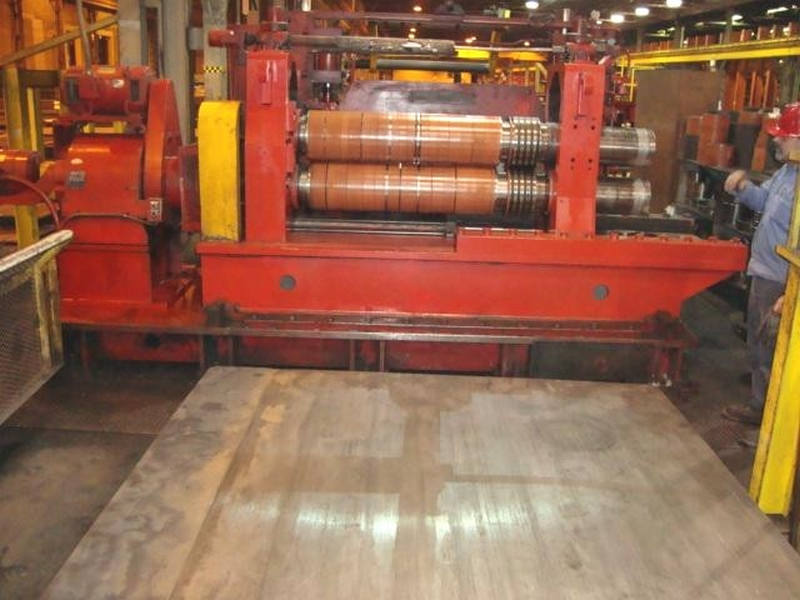

(2) Slitter Heads: (1) 72" x 8" Head (0.024" to 0.250"),
(1) 48" x 5" Head (0.006" to 0.134"), Crane Removal
Type, 20 HP AC Motor Threading Drive, 10 HP DC
Helper Drive For Light Gauge Slitting, 201" L x
57" W x 96" High Overall Size

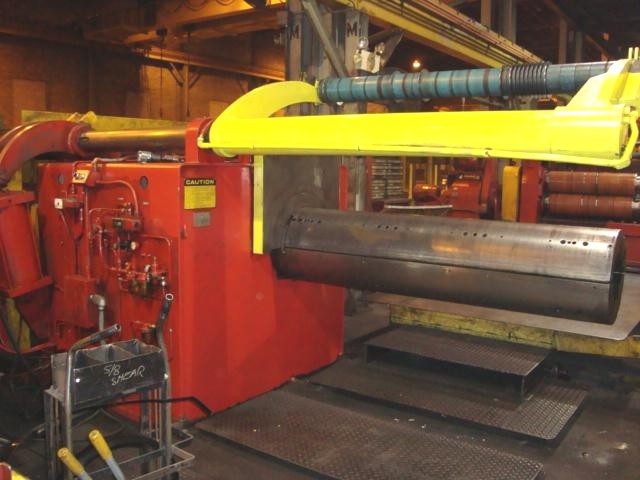

Model RR 72-4D-3-C-250 Recoiler: 20" Dia. Drum, Bolt On
Plates For 24" Dia., Hydraulic Clamp & Expansion,
Hydraulic Push-Off, Overarm Separator, 125 HP AC
V.S. Drive Motor, R.A. Reducer With 7.5:1 Ratio,
Drive-All 3-Speed Transmission With
0.882 / 1.053 / 1.462:1 Ratios, 238" L x 86" W x 82"
High Overall Size

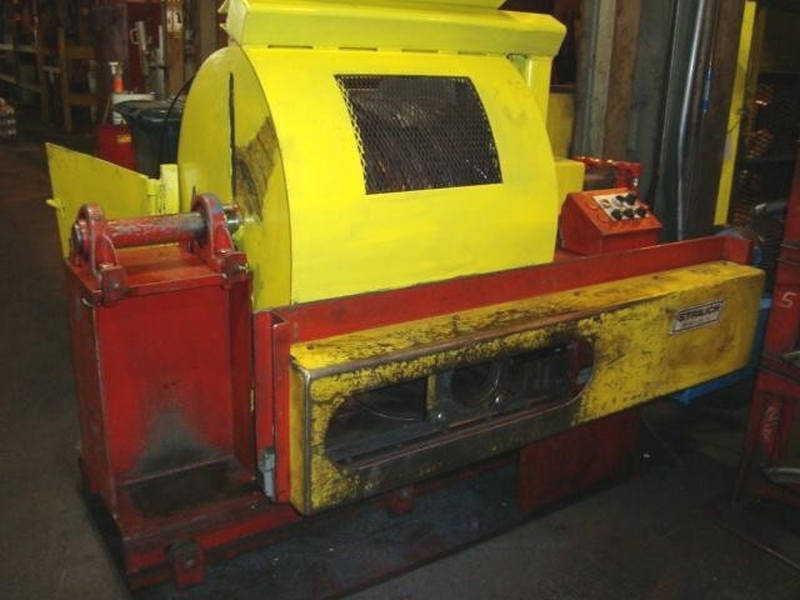

Scrap Winder: Hydraulic Drive, 15 HP Hydraulic Power Unit

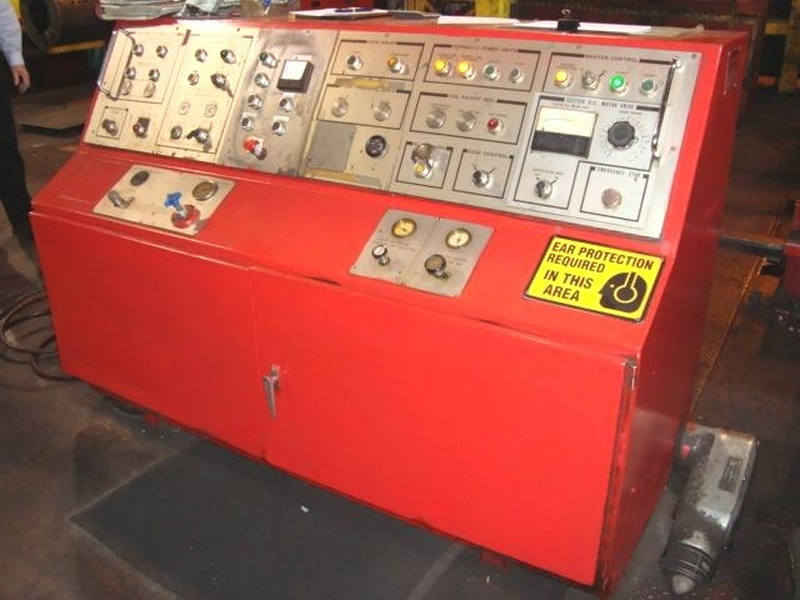

Operators Control Panel
Slitter Tooling Included: (2) Sets Of New Asko Shimless
Tooling
Drawings Included
CONDITION: Removed & In Storage
At Location ...........................
Photos Available
