AGE: 1960
SPECIFICATIONS:
Entry Coil Capacity: 10,000 Lb. x 72" O.D.
Tube O.D.: 1.875" to 5.562"
Wall Thickness: 0.065" to 0.238"
CONSISTING OF:

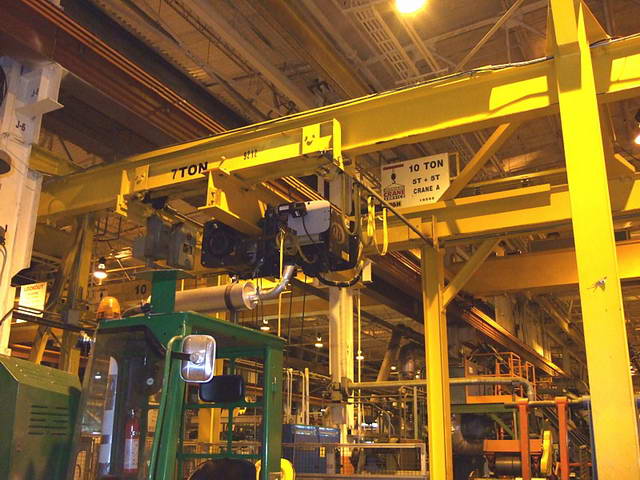

7.5 Ton Jib Hoist
Entry Coil Ramp, 2 Place

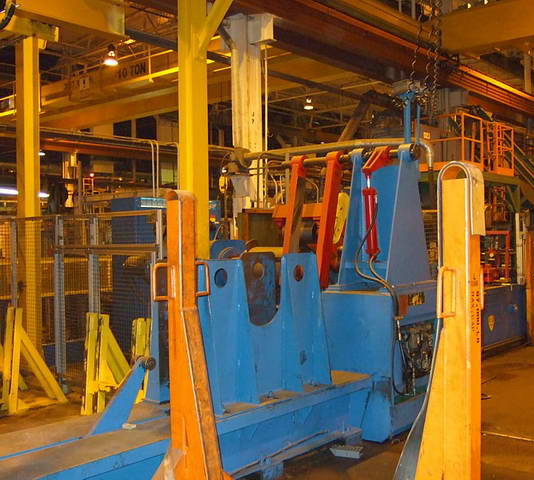

Coil Car: With Overarm Support, Roller Bottom,
Self-Contained Hydraulics, Hydraulic Lift & Travel
10,000 Lb. Uncoiler: Mandrel Type, Hydraulic Link
Expansion, AC Threading Drive, Sliding Base, Wichita
Air Brake
Overarm Holddown Roll: Powered
Peeler Station

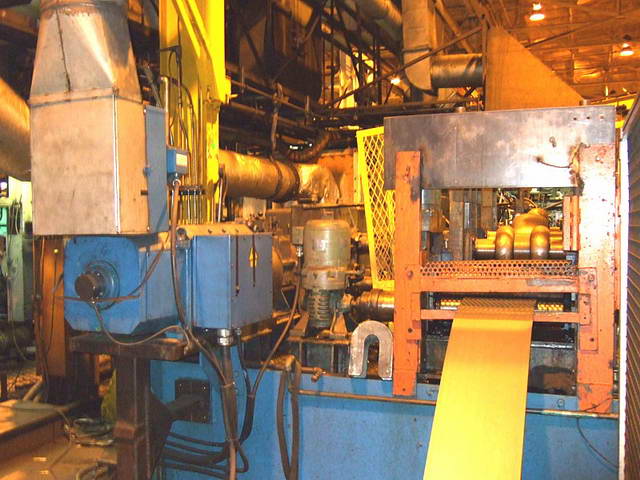

5-Roll Flattener

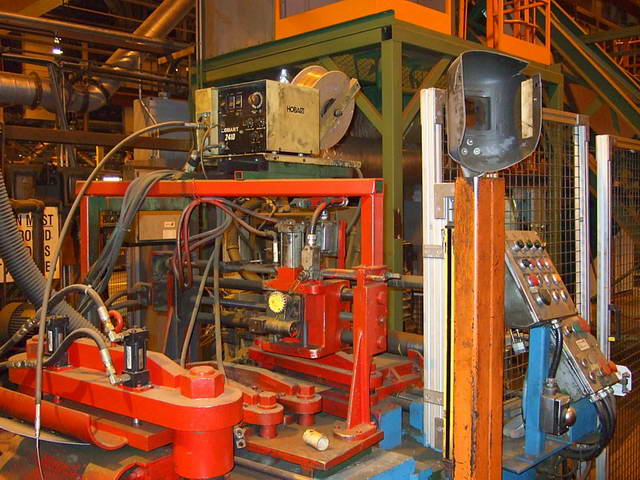

GUILD Shear End Welder: Bias Welder, Double Shear & Grip,
Semi-Automatic

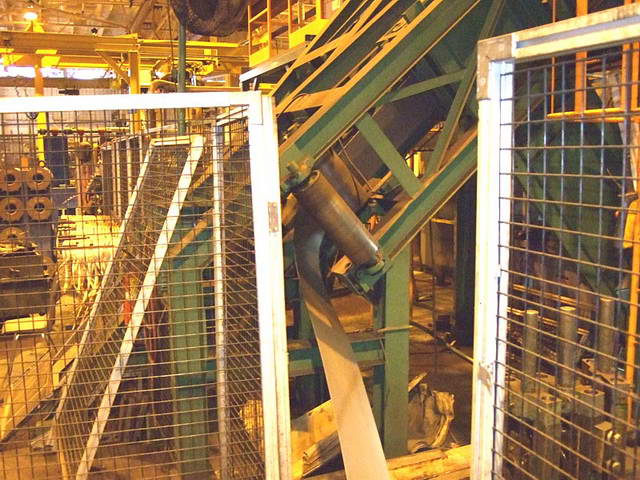

LOOPCO Overhead Accumulator: 400' Capacity, Canted
30 Degrees Off The Top Of The Line

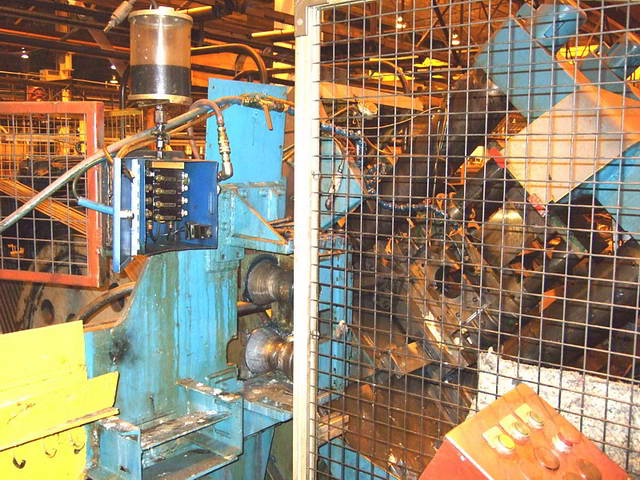

MCKAY Forming Mill
6 Horizontal, 23" F Stands 1 - 3
40 HP DC, 850 / 2400 RPM
With 2-Speed Gearbox
3 Vertical Fin Pass Stands
40 HP DC, 850 / 2400 RPM
With 2-Speed Gearbox
4-Roll Weld Box
O.D. Scarf
6' Coolant Trough
300kW HF Welder

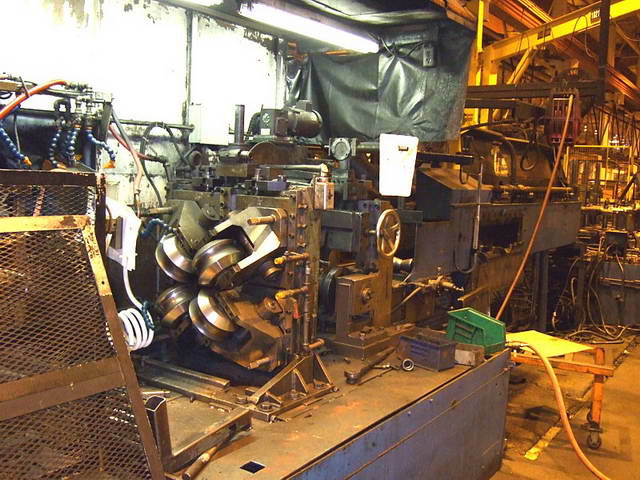

Sizing Mill: 3.750" Diameter x 9.500" Face Shafts,
3 Horiz., 3 Vert., 40 HP DC Motor (850 / 2400 RPM),
With 2-Speed Gearbox

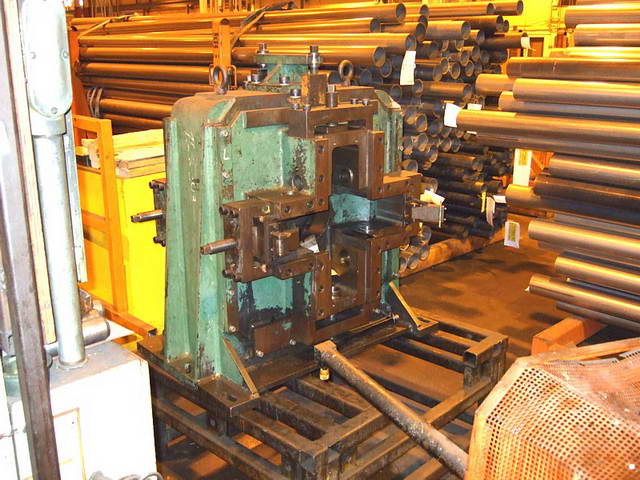

Turkshead: Non-Driven
ALPHA Cut-Off: 45 Degree Inclined To Front, 15' Minimum
30' Runout With Short Out Discharge To The Rear Of The
Machine With Bundle Cradles, Long Length Cradles &
Kick Off To The Operator Side
Seimens Drives & Controls Added In 1994
NOTE: Tooling Is Not Included
At Location ...........................
Photos Available
