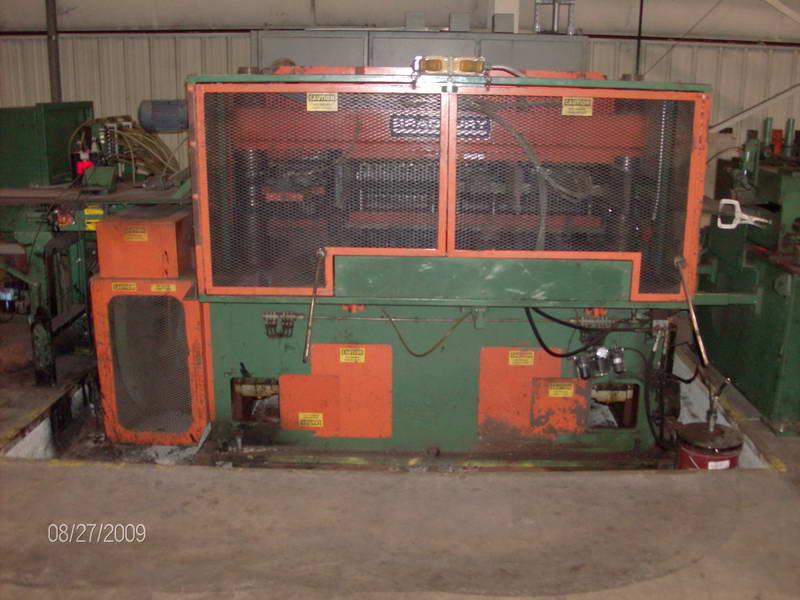

BRADBURY DTR Purlin Line, 4" x 2" to 14" x 4" Cee, 3.5" x 2" to 14" x 3.5" Zee   Our stock number: 47013

BRADBURY DTR Purlin Line, 4 x 2 to 14 x 4 Cee, 3.5 x 2 to 14 x 3.5 Zee

Click on picture below for larger version
BRADBURY DTR Purlin Line, 4 x 2 to 14 x 4 Cee, 3.5 x 2 to 14 x 3.5 ZeeBRADBURY DTR Purlin Line, 4 x 2 to 14 x 4 Cee, 3.5 x 2 to 14 x 3.5 ZeeBRADBURY DTR Purlin Line, 4 x 2 to 14 x 4 Cee, 3.5 x 2 to 14 x 3.5 ZeeBRADBURY DTR Purlin Line, 4 x 2 to 14 x 4 Cee, 3.5 x 2 to 14 x 3.5 Zee
BRADBURY DTR Purlin Line, 4 x 2 to 14 x 4 Cee, 3.5 x 2 to 14 x 3.5 ZeeBRADBURY DTR Purlin Line, 4 x 2 to 14 x 4 Cee, 3.5 x 2 to 14 x 3.5 ZeeBRADBURY DTR Purlin Line, 4 x 2 to 14 x 4 Cee, 3.5 x 2 to 14 x 3.5 Zee

AGE: 1999

SPECIFICATIONS:

Side By Side Design
(1) Set Of Tooling For Cee's, (1) Set Of Tooling For Zee's
Tooling Is Adjusted With Hydraulic Motors, Attached To A
Ball Screw, For The Different Size Parts That It
Will Make
The Size Is Controlled With A Linear Scale & A Digital
Device That Tell The Operator The Correct Position

Cee: 4" x 2" to 14" x 4"
Zee: 3-1/2" x 2" to 14" x 3-1/2"
Part Size Changed Via Hydraulic Motors / Ball Screw With

Digital Tool Position Readout
Roll Channel Capability

CONSISTING OF:

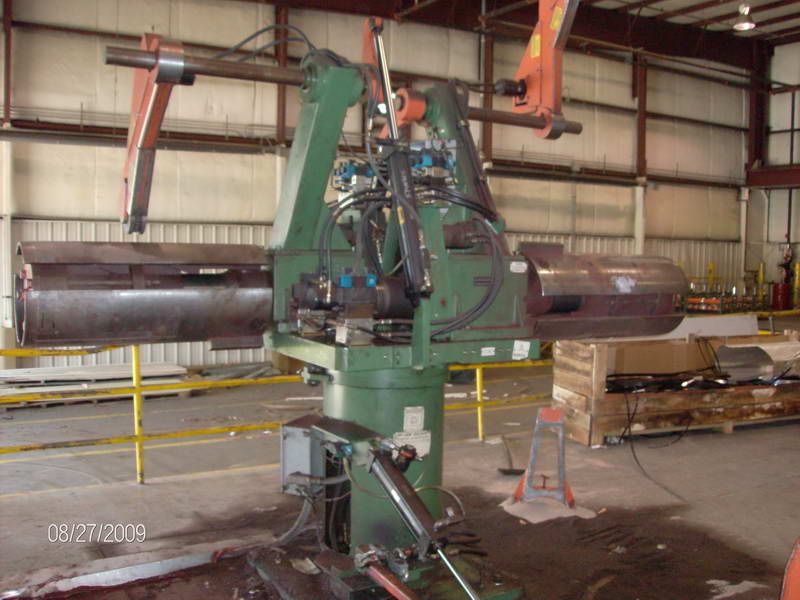

10,000 Lbs. (Each End) Decoiler, 2000

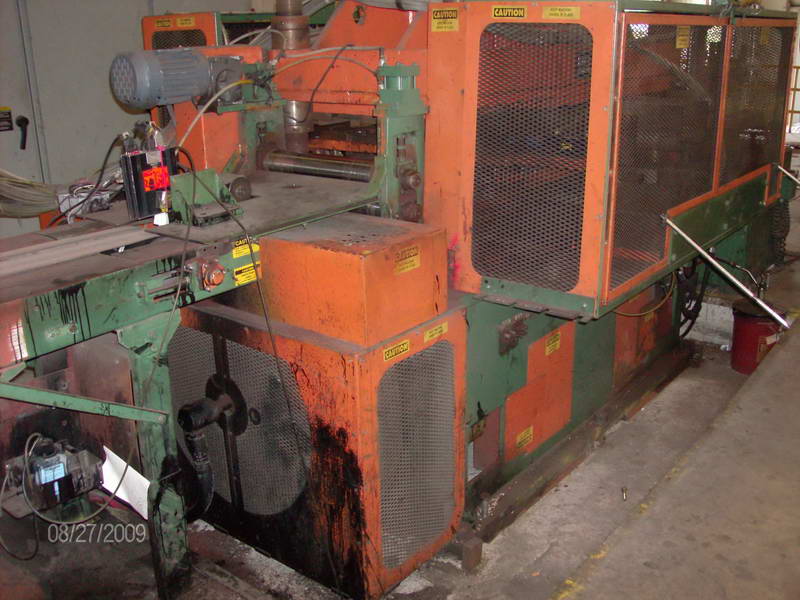

Straightener/Feeder, 1998
100 Ton Press, Tooled For MBCI Punch Pattern, 1998
Roll Former, 1999

MOTOR DATA: 75 HP

CONDITION: In Storage

At Location ...........................
