SPECIFICATIONS:
Material: Cold Rolled & Hot Rolled Steel
Thickness: 0.032" to 0.375"
Incoming Widths: 13" to 60"
Coil I.D.: 20" to 24" At Entry
24" At Exit
Coil O.D., Max.: 72"
Coil Weight, Max.: 40,000 Lbs.
Line Speed, 2-Speed: 200 FPM & 500 FPM Constant
Yield Strength: 60,000 PSI
Cutting Capacity: 5 Cuts In .375"
7 Cuts In .250"
10 Cuts In .194"
Hand Of Line: Right To Left
Utilities: Electricity At 480/60/3
Control Circuits 110 Volts
Clean Air At 80 PSI
CONSISTING OF:
Entry 4-Arm COILTEC Turnstile: Powered Rotation, "U"
Shape Arm To Accept C-Hook
Entry Coil Car: Above Floor Type, Self-Contained Hydraulic

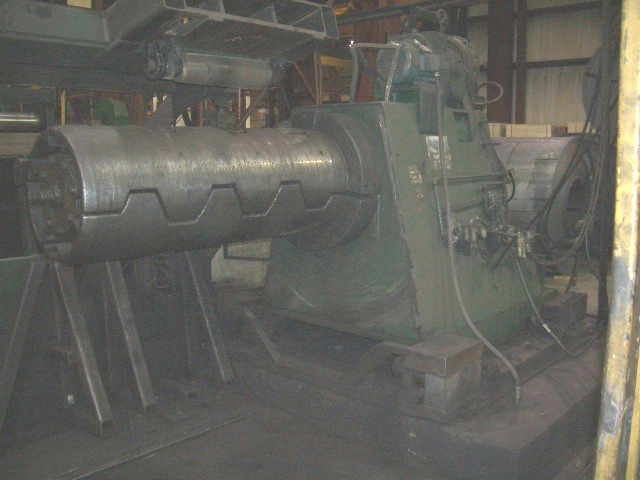

Mandrel Uncoiler: Hydraulic Expansion, (4) Segment Pumpkin
Tooth Mandrel, Threading Drive, Water Cooled Brake,
Shifting Base
Combination Driven Holddown Roll With Peeler
Four Roll Coil Breaker

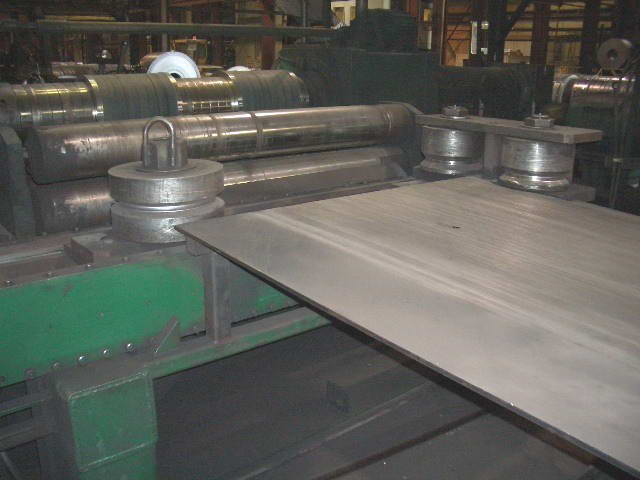

Entry Side Guides

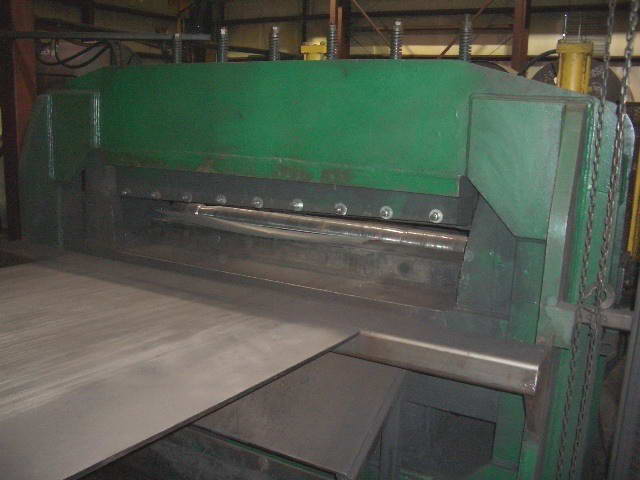

Crop Shear

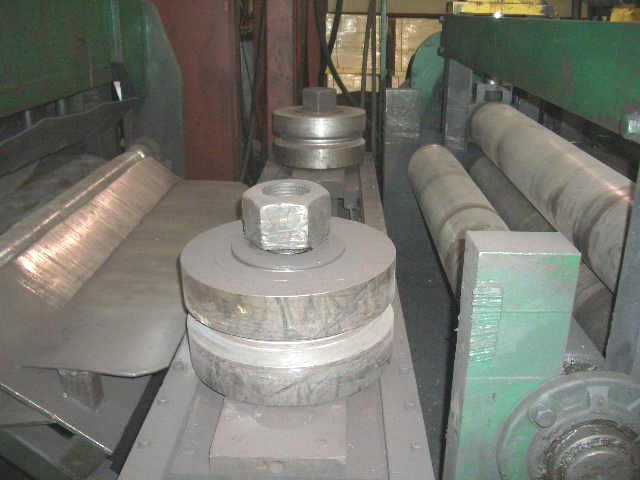

Entry Side Guides
Entry Pinch Rolls

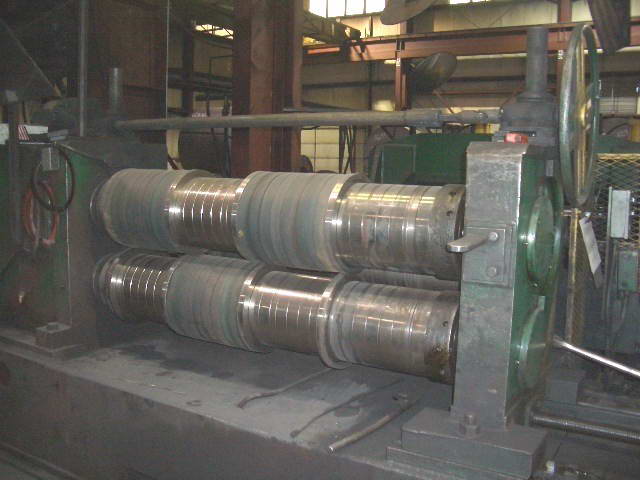

Slitter Head: 10" Dia. Arbors, Single Eccentric
Adjustment, AC Motor Threading Drive

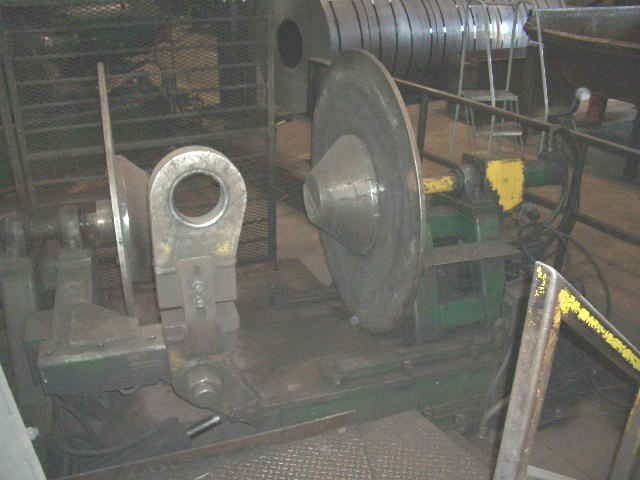

(2) Scrap Winders: Level Wind
Threading Table To Recoiler

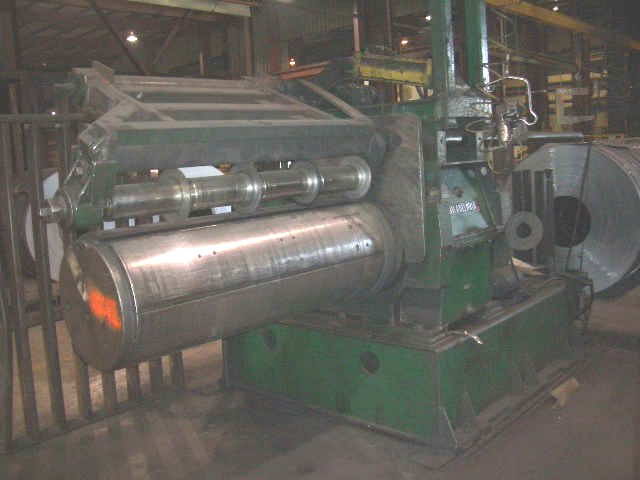

Recoiler: 24" Dia. Drum, Hydraulic Clamp & Expansion,
Hydraulic Push-Off, DC Drive Motor, Overarm Separator

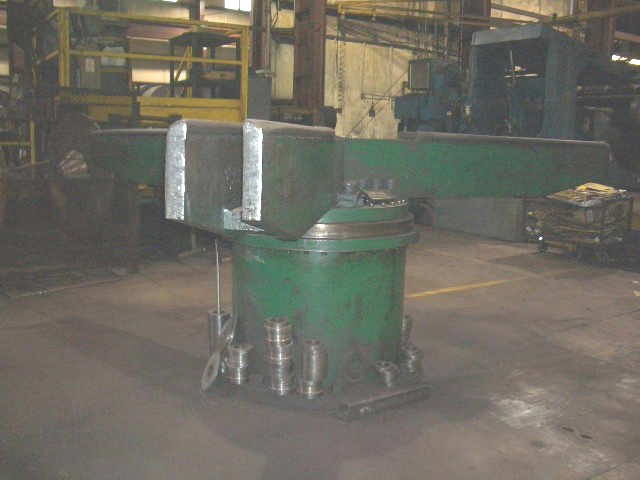

Exit Three Arm Turnstile: C-Hook Type Arms, Powered
Rotation
Hydraulic Power Unit
Electrical Equipment
Slitter Tooling
OPTIONAL:
Hydraulic Crop Shear
At Location ...........................
Photos Available
