AGE: 2001
MODEL NUMBER: RU-35-16
SPECIFICATIONS:
Full Set Of Rafted Stands For Quick Change
Tube Diameter: 2" to 6"
Wall Thickness: .010" to .250"
Line Speed: 180 FPM
Shaft Diameter: 3-1/2"
Direction: Left To Right
CONSISTING OF:

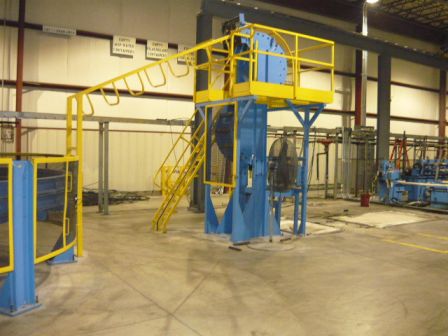

20,000 Lb. (Per Arm) Uncoiler: Double End, 18" to 20" ID,
72" OD, 18" Width, Powered Expansion, Hydraulic
Rotation, Sliding Base, Air Cooled Brake
Hydraulic Peeling Table

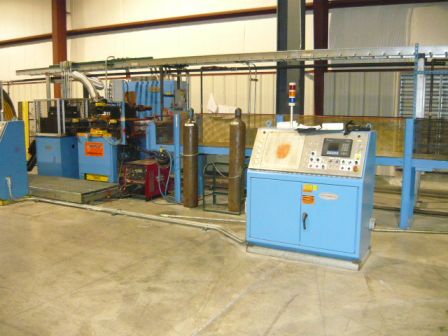

18" W x .035" to .160" GUILD Model ME200-20B Shear/End
Welder: Stationary Design, Lincoln TIG 275 Power
Supply, Built-In Automatic Gauge Bar, Air Cylinders
For Clamping, Instant Torch Accelerator, Straight Cut
Shear

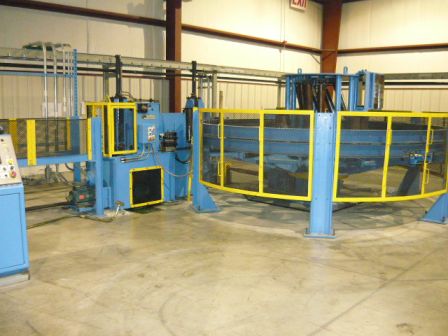

Horizontal Accumulator: 20" Max. Coil Width, Powered Pinch
Rolls, 21.7" Pinch Rolls Width, 8.3" Pinch Rolls
Diameter, 13-3/4' Outer Diameter, 5-1/4' Inner Roller
Cage Diameter, Mill Connecting Tower, DC Motor Drive

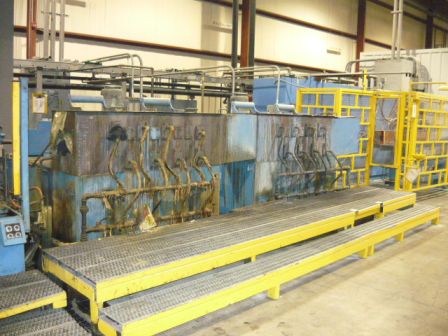

Forming Mill: 3-1/2" Shaft Diameter, 21" Roll Face,
15" Vertical Adjustment, Entry Guide Rolls,
(9) Driven Stands, Set Of Rafted Stands, Universal
Drive, Individual Gear Boxes
Sizing Mill: (6) Sizing Stands, 3-1/2" Shaft Diameter,
Universal Drive, Individual Gear Boxes, Set Of Rafted
Stands, (1) Single Sided Turkhead, Automatic Head
Adjustment
Flying Cut-Off Press: Hydraulic Power, Mechanical
Traverse, Cone Drive AC Motor, Run-Out Table

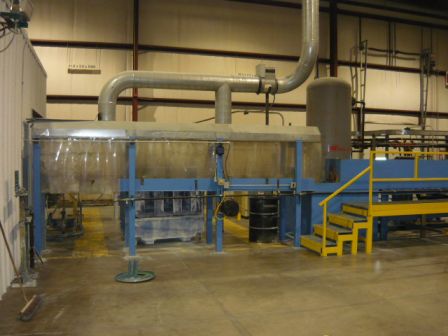

NOTE: Complete Fully Integrated Nordson Paint Line Is Available
MOTOR DATA: 200 kW Reliance, 1760/2640 RPM
At Location ...........................
Photos Available
