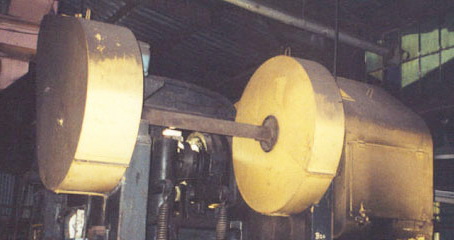

1-1/4" x 4' BERTSCH #9 Power Squaring Shear, 48" FOPBG, 18" Gap, 30 HP   Our stock number: 46427

1-1/4 x 4' BERTSCH #9 Power Squaring Shear, 48 FOPBG, 18 Gap, 30 HP

Click on picture below for larger version
1-1/4 x 4' BERTSCH #9 Power Squaring Shear, 48 FOPBG, 18 Gap, 30 HP1-1/4 x 4' BERTSCH #9 Power Squaring Shear, 48 FOPBG, 18 Gap, 30 HP

AGE: 1967

SPECIFICATIONS: Per Manufacturer

Capacity: 4' x 1-1/4"
Depth of Gap: 18"
Distance Between Housings: 56"
Blade Size: 68" x 5-7/8" x 1-1/2"

EQUIPPED WITH:
Push-Button Start/Stop and Controls
48" Front Operated Power Back Gauge (Two Speed)
(8) Finger Mechanical Hold-downs
Mechanical Clutch and Brake

MOTOR DATA:
Main - 30 HP Westinghouse, 220/440/60/3-1620 RPM
1/12 HP / 1/8 HP Master, 440/60/3, 406/1620 RPM

OVERALL DIMENSIONS: 9'2" W x 11'8" L x 11'6" High
WEIGHT: 102,400# - Approximate

At Location.....................................
**PHOTO AVAILABLE
