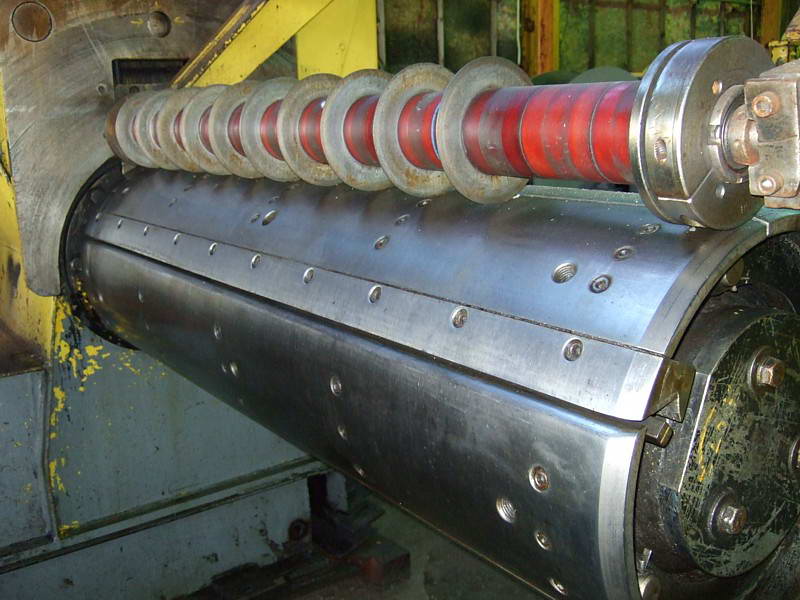

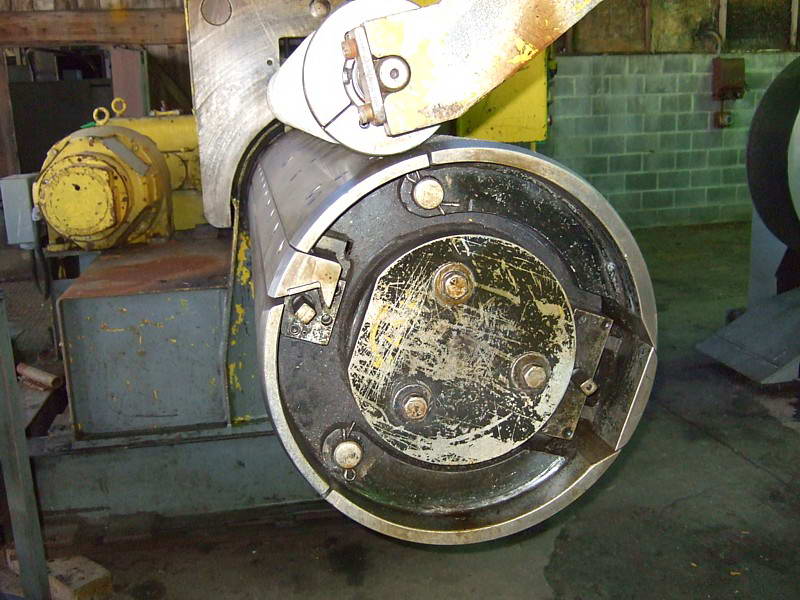

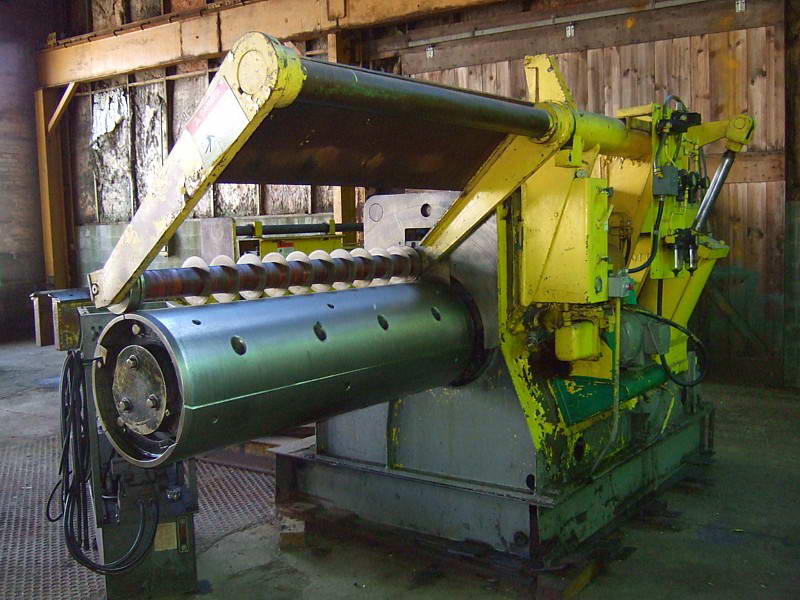

40,000 Lb MCKAY Recoiler, 20" Dia x 64.5" Face Drum, Hyd Push-Off, 75 HP   Our stock number: 46423

40,000 Lb MCKAY Recoiler, 20 Dia x 64.5 Face Drum, Hyd Push-Off, 75 HP

Click on picture below for larger version
40,000 Lb MCKAY Recoiler, 20 Dia x 64.5 Face Drum, Hyd Push-Off, 75 HP40,000 Lb MCKAY Recoiler, 20 Dia x 64.5 Face Drum, Hyd Push-Off, 75 HP40,000 Lb MCKAY Recoiler, 20 Dia x 64.5 Face Drum, Hyd Push-Off, 75 HP
40,000 Lb MCKAY Recoiler, 20 Dia x 64.5 Face Drum, Hyd Push-Off, 75 HP40,000 Lb MCKAY Recoiler, 20 Dia x 64.5 Face Drum, Hyd Push-Off, 75 HP

SPECIFICATIONS:

Line Direction: Left To Right

Drum Size: 20" Dia. x 64.5" Face
Distance, Floor To Center Of Drum, Approx.: 44"

EQUIPPED WITH:

Manual Expansion & Grip
Hydraulic Operated Push-Off
Air Operated Overarm Separator

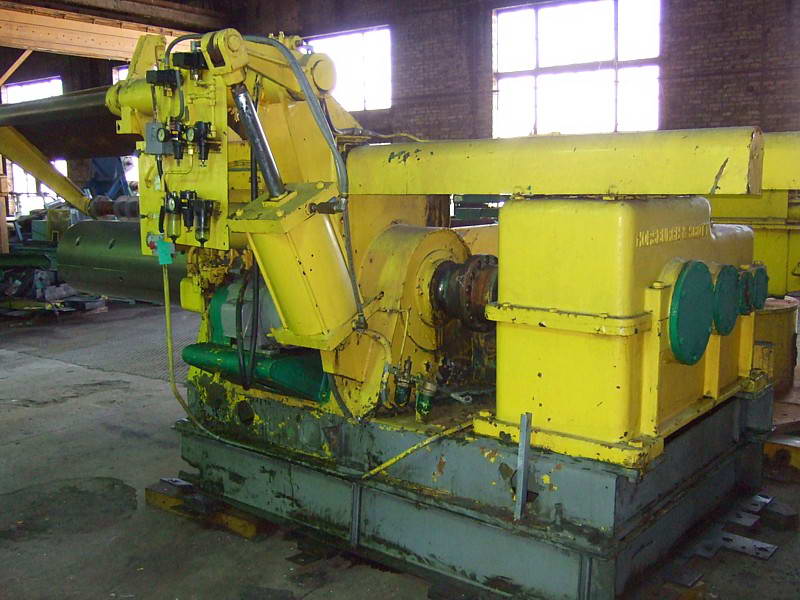

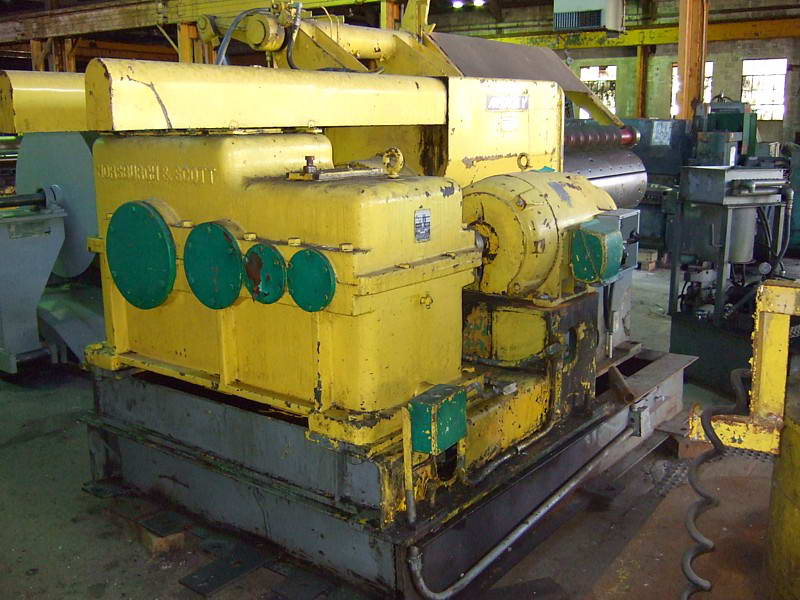

Horsburgh & Scott Reducer, Size 3200L, S/N J-2926, 2-Speed,
W/48.88 & 96:1 Ratios
Separator Tooling

MOTOR DATA: 75 HP AC, 220/440, 1740 RPM
5 HP AC, 208-220/440, 1160 RPM

OVERALL DIMENSIONS: 186" L x 100" W x 93" H

At Location ........................... Toledo, OH
Photos Available
