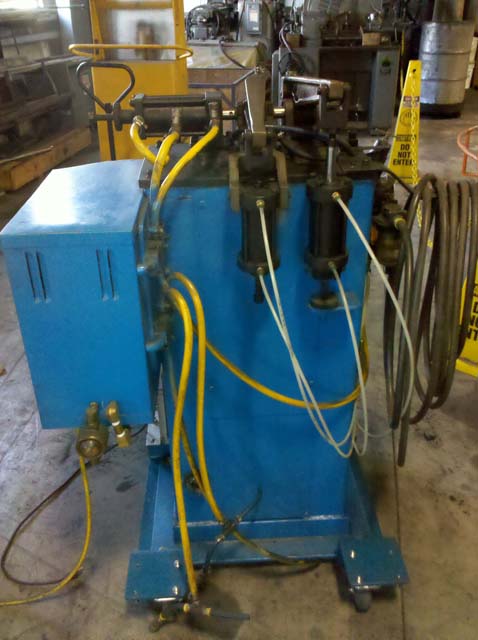

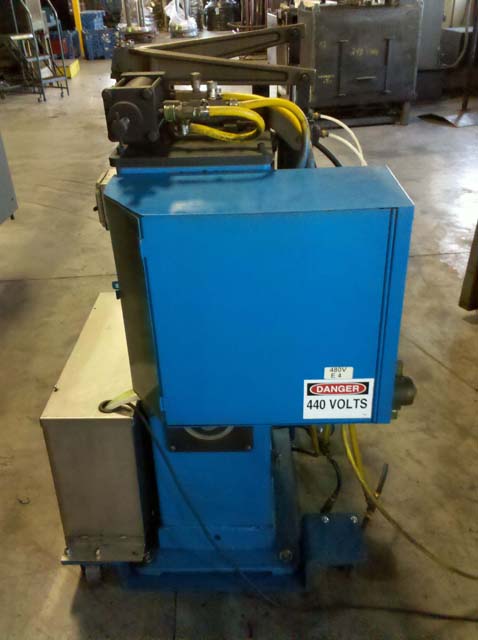

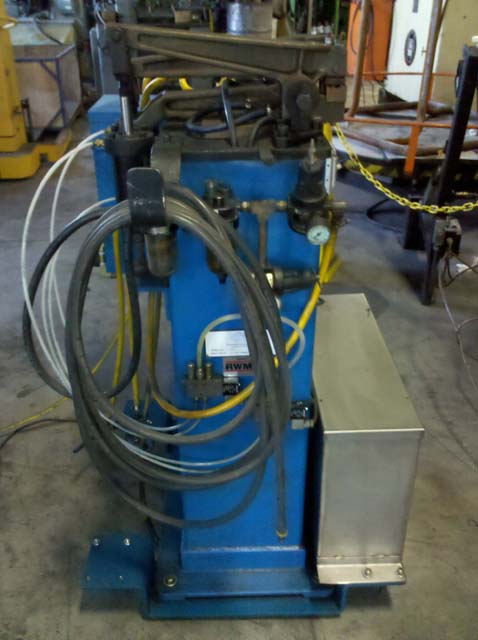

45 KVA (50% Duty Cycle) A.I.I. Butt Welder, 440 Volt, 1/4" to 5/8" MS Rd Wire   Our stock number: 46336

45 KVA (50% Duty Cycle) A.I.I. Butt Welder, 440 Volt, 1/4 to 5/8 MS Rd Wire

Click on picture below for larger version
45 KVA (50% Duty Cycle) A.I.I. Butt Welder, 440 Volt, 1/4 to 5/8 MS Rd Wire45 KVA (50% Duty Cycle) A.I.I. Butt Welder, 440 Volt, 1/4 to 5/8 MS Rd Wire45 KVA (50% Duty Cycle) A.I.I. Butt Welder, 440 Volt, 1/4 to 5/8 MS Rd Wire45 KVA (50% Duty Cycle) A.I.I. Butt Welder, 440 Volt, 1/4 to 5/8 MS Rd Wire
45 KVA (50% Duty Cycle) A.I.I. Butt Welder, 440 Volt, 1/4 to 5/8 MS Rd Wire45 KVA (50% Duty Cycle) A.I.I. Butt Welder, 440 Volt, 1/4 to 5/8 MS Rd Wire45 KVA (50% Duty Cycle) A.I.I. Butt Welder, 440 Volt, 1/4 to 5/8 MS Rd Wire45 KVA (50% Duty Cycle) A.I.I. Butt Welder, 440 Volt, 1/4 to 5/8 MS Rd Wire

AGE: 1996
Built and Used as a Fatory Demo Only
Fully Factory Refurbished to new in 2008


MODEL NUMBER: B1

SPECIFICATIONS:

Resistance Butt Weld Round Wire Together "End-To-End"

KVA at 50% Duty Cycle: 45
Primary Voltage: 440, 6 Hz, 1 Phase

Material, Mild Steel, Round Wire: 1/4" to 5/8"

EQUIPPED WITH:

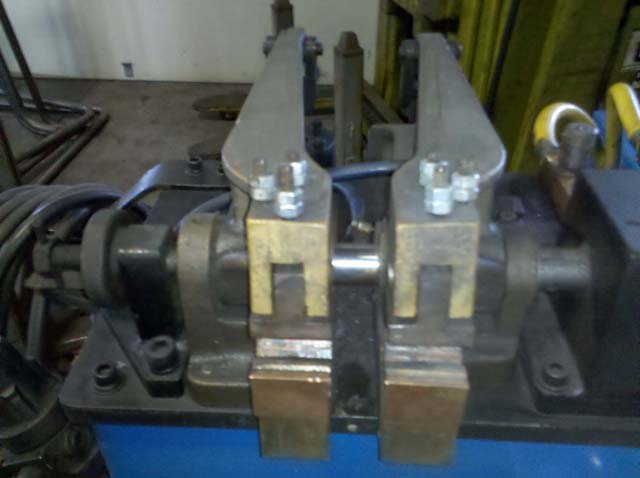

(2) Air Operated Clamping Cylinders Mounted On Swivel Arms

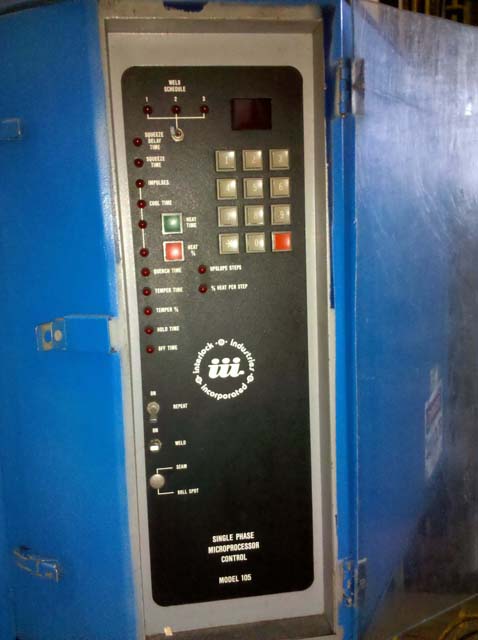

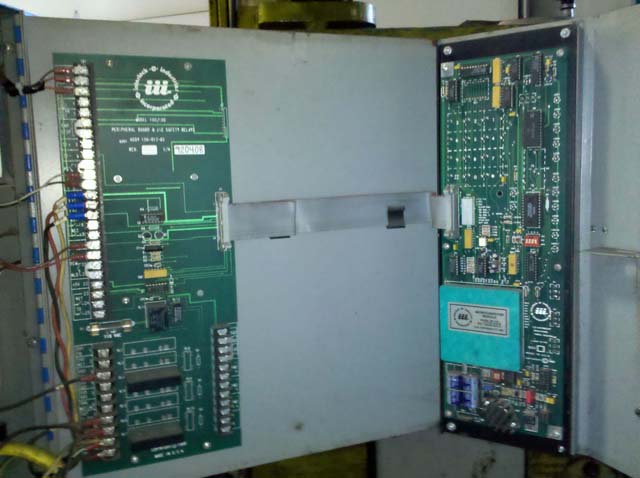

Intertron Microprocessor Single-Phase Resistance Welding
Controller With Clamp Squeeze, Weld And Hold Timers

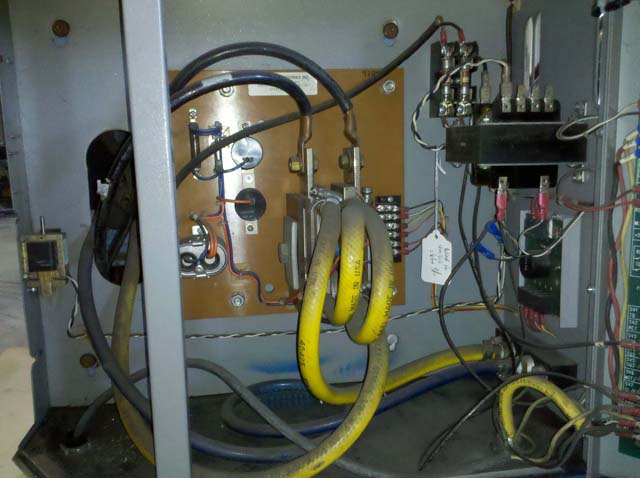

With A Solid State SCR Contactor (Water Cooled)
2-Stage Footswitch Initiates Clamping & Weld Cycle
Welding Control With Multiple Schedule-Selects

NEW COST IS APPROXIMATELY $12,000

CONDITION: Good, Never Used in Production.

At Location ...........................
Photos Available
