72" x 7" x 60,000 Lb CINCINNATI Slitting Line   Our stock number: 46112

72 x 7 x 60,000 Lb CINCINNATI Slitting Line

Click on picture below for larger version
72 x 7 x 60,000 Lb CINCINNATI Slitting Line72 x 7 x 60,000 Lb CINCINNATI Slitting Line72 x 7 x 60,000 Lb CINCINNATI Slitting Line72 x 7 x 60,000 Lb CINCINNATI Slitting Line
72 x 7 x 60,000 Lb CINCINNATI Slitting Line72 x 7 x 60,000 Lb CINCINNATI Slitting Line72 x 7 x 60,000 Lb CINCINNATI Slitting Line72 x 7 x 60,000 Lb CINCINNATI Slitting Line

CONSISTING OF:

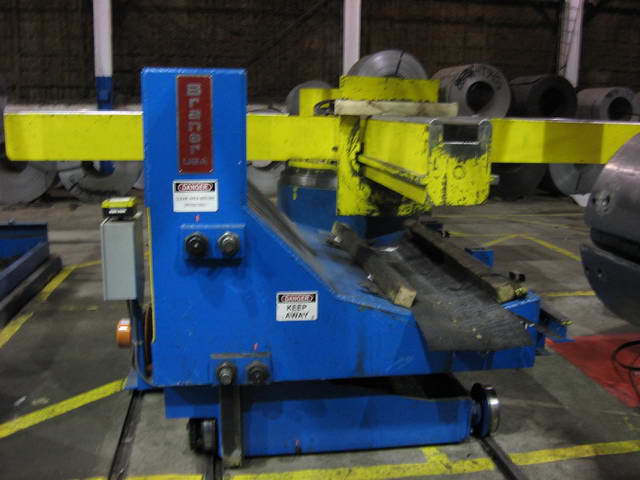

60,000 Lb. Entry Coil Car: Above Ground "L" Type

60,000 Lb. STALEX Uncoiler, 75" Wide, 20" to 24" With Pads
Sliding Base With 8" Total Movement, Hydraulic
Expansion, Feed-Up Motor, Wichita Brake,
Free-Standing Snubber Roll

Peeler: Hydraulic Extend & Lift

Crop Shear: Roto Shear To 1/4"

Edge Guides: Manual

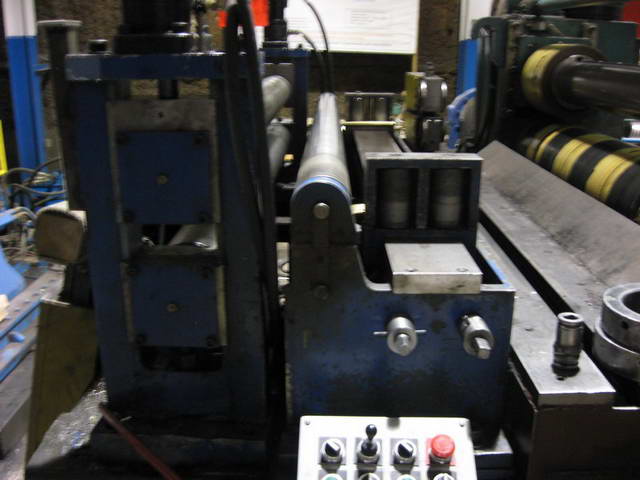

Pinch Rolls: Hydraulic, 5" Pinch Rolls, Driven

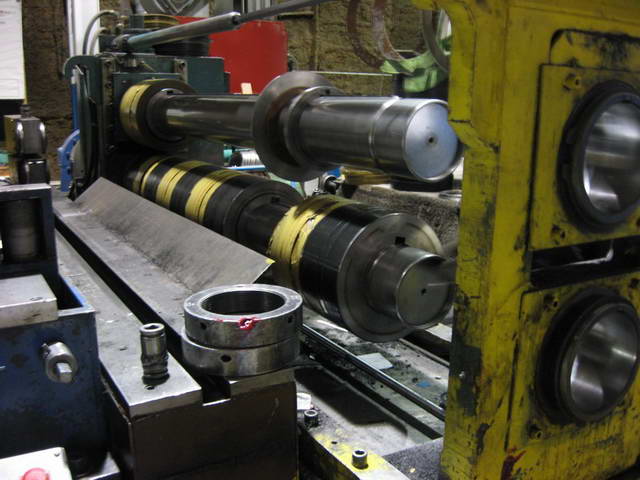

(2) CINCINNATI FORTE Slitters: 7" Arbors Cincinnati Style
Design, Outer Bearing Housing Travels Over Arbor
Closing Down To Approximately 48", 15 HP AC Jog Motor

Tension Stand: Heavy Duty Drag Stand With 12" Drag Boards

Tooling: Full Sets of 1/2", 1/4" Knives
Full Set Of Spacers & Rubbers

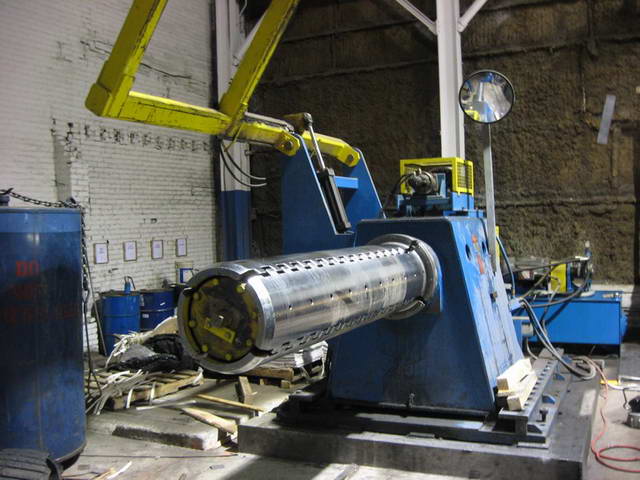

60,000 Lb. CINCINNATI Recoiler: 78" Mandrel, 20" / 24"
Pads, Overarm Separator, Hydraulic Push-Off,
150 HP DC Drive, 2-Speed Gear Box, Digital Drive
System

Exit Coil Car: 60,000 Lb. "L" Type With Remote Control

(2) Scrap Winders: (2) Hydraulic Drives, 2,500 Lb. Bundles

AVAILABLE AT ADDITIONAL COST:

72" x 10,000 Lb. IKOMA KIKAICO Banding Line
(See Stock # 46902)

CONDITION: Installed & Running

At Location ...........................
Photos Available
