60" x 12" x 50,000 Lb AETNA STANDARD / NOVA Slitting Line   Our stock number: 46111

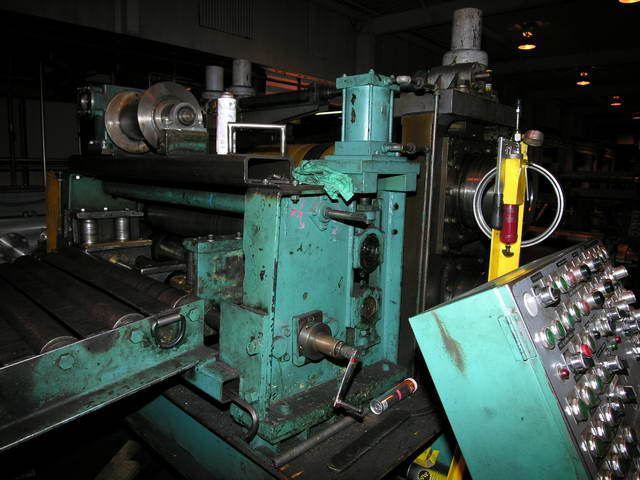

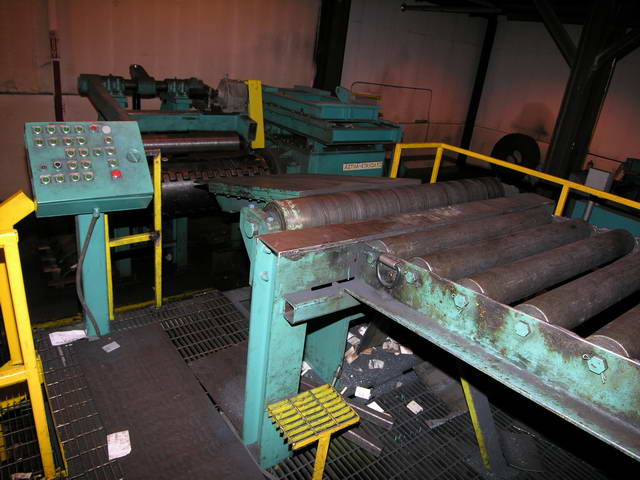

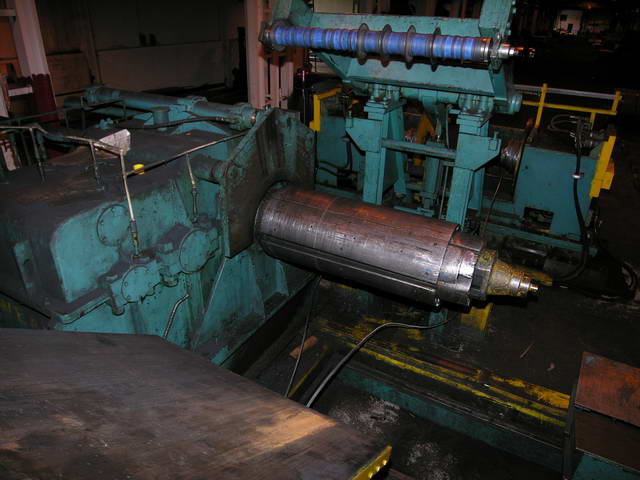

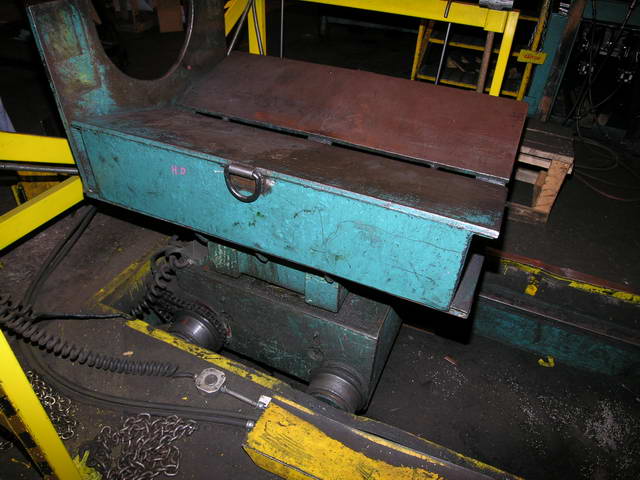

60 x 12 x 50,000 Lb AETNA STANDARD / NOVA Slitting Line

Click on picture below for larger version
60 x 12 x 50,000 Lb AETNA STANDARD / NOVA Slitting Line60 x 12 x 50,000 Lb AETNA STANDARD / NOVA Slitting Line60 x 12 x 50,000 Lb AETNA STANDARD / NOVA Slitting Line60 x 12 x 50,000 Lb AETNA STANDARD / NOVA Slitting Line
60 x 12 x 50,000 Lb AETNA STANDARD / NOVA Slitting Line60 x 12 x 50,000 Lb AETNA STANDARD / NOVA Slitting Line60 x 12 x 50,000 Lb AETNA STANDARD / NOVA Slitting Line60 x 12 x 50,000 Lb AETNA STANDARD / NOVA Slitting Line

CONSISTING OF:

50,000 Lb. AETNA STANDARD Entry Coil Car: Above Ground
Sled Type

63" x 50,000 Lb. AETNA STANDARD Uncoiler: 20" to 24" With
Pads To 30", Sliding Base With 8" Total Movement,
Hydraulic Expansion

Peeler: Hydraulic Extend & Lift

Edge Guides: Manual

Pinch Rolls: Hydraulic, 8" Pinch Rolls

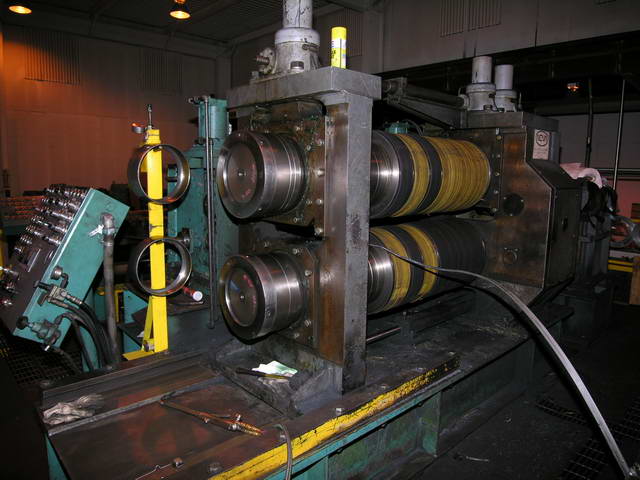

NOVA Slitter: 12" Arbors, Cincinnati Style Design, Outer
Bearing Housing Travels Over Arbor, Closing Down To
Approx. 48", 150 HP DC Drive Motor, 1994 (Approx.),
Current Owners Have Run (5) Cuts Of 1/2" Material
Plus Scrap

Tooling: Full Set Of Spacers & Rubbers
Full Sets Of 1", 3/4", 1/2" Knives,
Approximately (22) Each

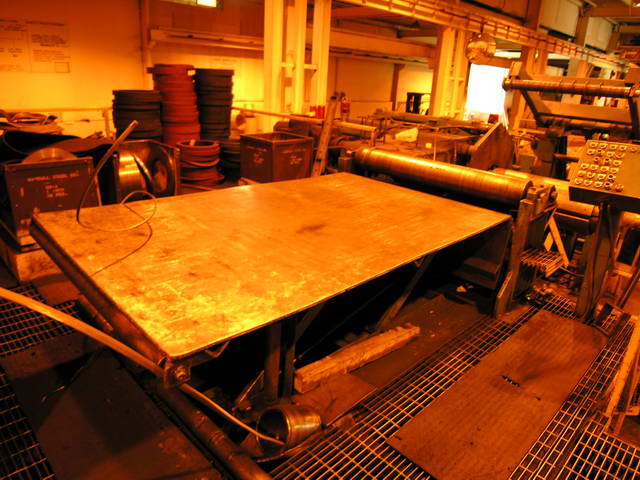

Threading Table: Power Lift & Placement

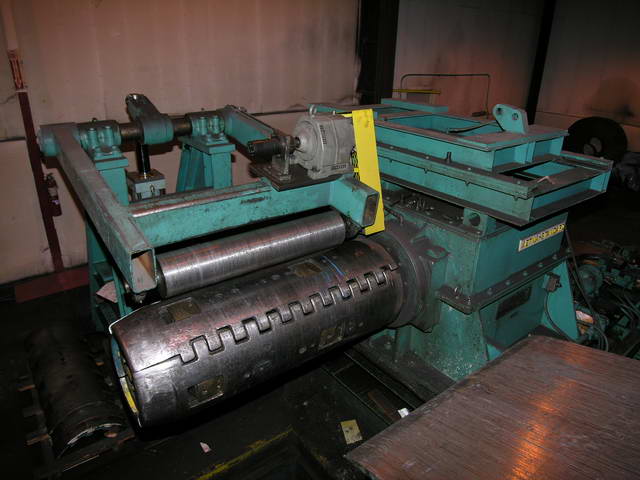

AETNA STANDARD Recoiler: 54" Grip Slot Length, 60" Overall
Mandrel, 20" (24" Pad Currently), 54" Overarm
Separator, 200 HP DC Drive, Single Speed Gear Box

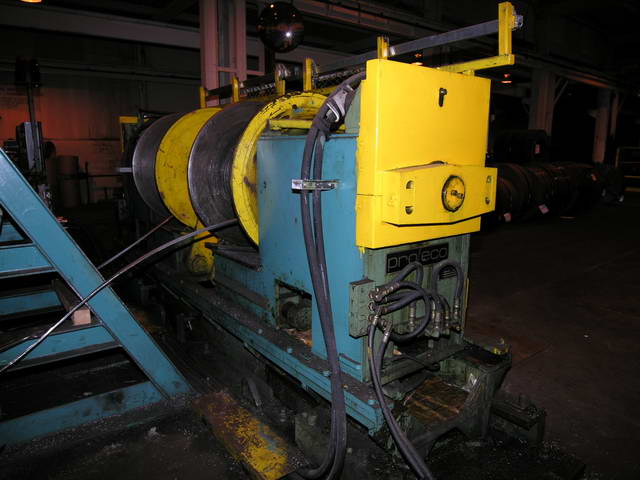

(2) PRO-ECO Scrap Winders: Heavy Duty, Will Handle 1/2"

50,000 Lb. AETNA STANDARD Coil Car: Above Ground Sled Type

CONDITION: Currently Installed & Running

At Location ...........................
Photos Available
