48" x .187" x 40,000 Lb WEAN Double-Loop Slitting Line   Our stock number: 45944

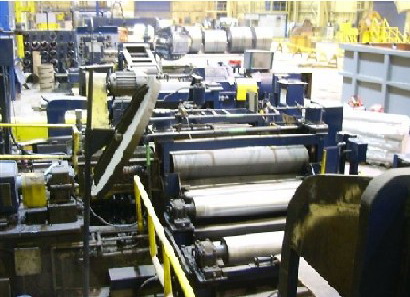

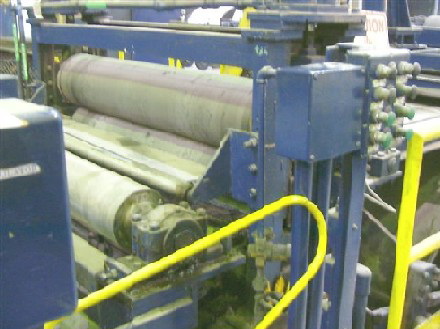

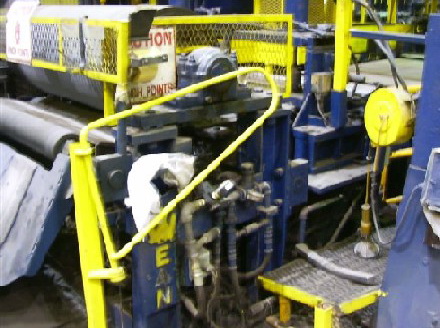

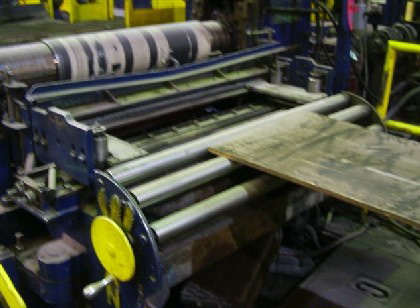

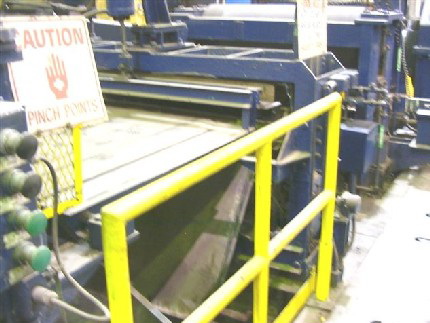

48 x .187 x 40,000 Lb WEAN Double-Loop Slitting Line

Click on picture below for larger version
48 x .187 x 40,000 Lb WEAN Double-Loop Slitting Line48 x .187 x 40,000 Lb WEAN Double-Loop Slitting Line48 x .187 x 40,000 Lb WEAN Double-Loop Slitting Line48 x .187 x 40,000 Lb WEAN Double-Loop Slitting Line
48 x .187 x 40,000 Lb WEAN Double-Loop Slitting Line48 x .187 x 40,000 Lb WEAN Double-Loop Slitting Line48 x .187 x 40,000 Lb WEAN Double-Loop Slitting Line48 x .187 x 40,000 Lb WEAN Double-Loop Slitting Line

SPECIFICATIONS:



Slitter Range: .010" to .187"
Coil I.D.: 16" & 20"
Coil O.D., Max.: 72"
Material Width: 12" to 50" (48" Trimmed)
Line Speed: 50 to 100 FPM (Jog)
250 to 1000 FPM (Determined By Thickness)

CONSISTING OF:

Hydraulic Coil Feeder
40,000 Lb. Uncoiler
Hold Down Roll & Entry Feed System
Electric Edge Guide System
Hydraulic Tension Pressure Roll
X-Ray Gauge System

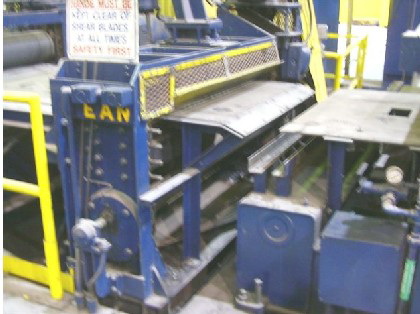

Hydraulic Crop Shear
Scarp Box (Shear Cut) & Hydraulic Flip Table
Hydraulic Tension Roll
First Loop Pit
Basket Roll Entry System
Entry Edge Guide Roller Type
Hydraulic Drag Board Flattener

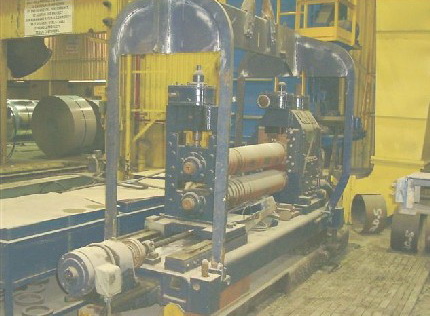

Driven Slitter Head: 6-1/2" @ 35 HP
Exit Basket Roll
Second Looping Pit
Scrap Baller & Scrap Shoot
Hydraulic Tension Board Pad
Hydraulic Tension Exit Roll
Exit Flip Table Into Recoiler
40,000 Lb. Recoiler @ 100 HP With Hold Down Arm
Hydraulic Push-Off Arm

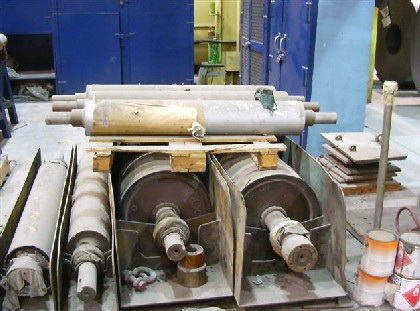

SPARE PARTS:

Full Over Arm Tooling & Steel Dividers (Spare Slitter Head)
Full Slitter Tooling, Precision Steel Spaces & Knives,
Storage Cabinets
Set Up Tables

At Location ...........................
Photos Available
