SPECIFICATIONS:
Counter-Clockwise Rotation
Radius, Max.: 18"
Tube Length Over Mandrel, Max.: 15'
Bending Arm Speed, Average, Max.: 2.3 RPM
Standard Operating Pressure: 3000 PSI
Height Floor To Centerline Of Bending Form: 47"
BENDING CAPACITIES:
IPS Extra Heavy Pipe: 3-1/2"
Non-Ferrous Tubing Y.P. To 12,000 PSI: 4" O.D. x .300"
Non-Ferrous Tubing Y.P. To 25,000 PSI: 4" O.D. x .250"
Steel Tubing Y.P. To 40,000 PSI: 4" O.D. x .165"
Stainless Steel Tubing Y.P. To 60,000 PSI: 3-1/2" x .250"
EQUIPPED WITH:

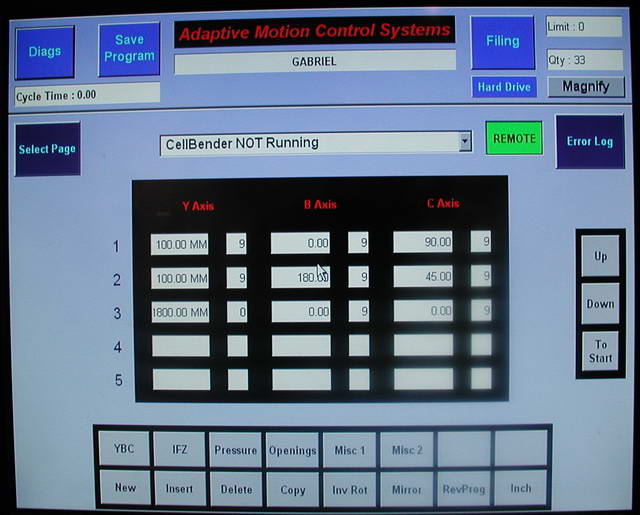

Adaptive Motion Controls With Touch Screen Interface
Master Pressure Die Bar
Clamp Die Holder
Fully Programmable Planing Bend Head Assembly
Fully Programmable Hydraulic Mandrel Extractor
Fully Programmable Pressure Die Assist
Pressure Control Of Clamp, Pressure Die & Assist
Centralized Pressure Lubrication System
Inline Water / Oil Heat Exchanger
AC Main Drive Motor With Electric Panel
New Motion Control Drive Cards For All Individual Servos
New Labeled, Harnessed NEMA Or IEC Rated Wiring
Trailing Lead Operator Station And Remote Operator Pendant
Operations Manual With Hydraulic, Logic And Electrical
Schematics
Inline Heat Exchanger
OVERALL DIMENSIONS: 204" x 76" x 52" H
WEIGHT: 12,000 Lbs.
CONDITION: Complete New Controls
Rebuilt Hydraulics
Leak And Pressure Tested
At Location ...........................
Photos Available
