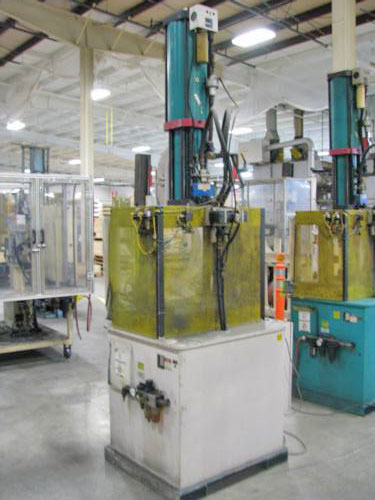

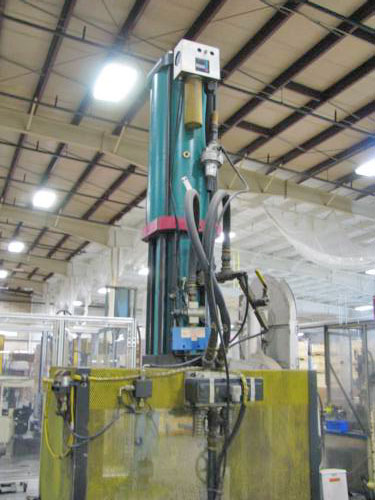

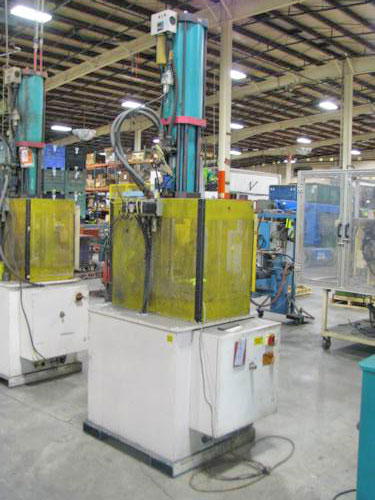

TOX PRESSOTECHNIK #MBG-50 Power Package Press, 50 Ton, 5.90" Stroke   Our stock number: 45775

TOX PRESSOTECHNIK #MBG-50 Power Package Press, 50 Ton, 5.90 Stroke

Click on picture below for larger version
TOX PRESSOTECHNIK #MBG-50 Power Package Press, 50 Ton, 5.90 StrokeTOX PRESSOTECHNIK #MBG-50 Power Package Press, 50 Ton, 5.90 StrokeTOX PRESSOTECHNIK #MBG-50 Power Package Press, 50 Ton, 5.90 Stroke
TOX PRESSOTECHNIK #MBG-50 Power Package Press, 50 Ton, 5.90 StrokeTOX PRESSOTECHNIK #MBG-50 Power Package Press, 50 Ton, 5.90 StrokeTOX PRESSOTECHNIK #MBG-50 Power Package Press, 50 Ton, 5.90 Stroke

AGE: 2000
MODEL NUMBER: MBG-50

CATALOG SPECIFICATIONS:

2-Column Press Frame, Large Tooling Area Model

Inlet Air Pressure, Max.: 90 PSI
Press Force: 98,240 lbf @ 90 PSI
Approach Force: 1,620 lbf @ 90 PSI
Return Force: 2,700 lbf @ 90 PSI

SPECIFICATIONS:

Total Stroke: 5.90"
Power Stroke: .39"
Bolster Plate: 20" x 34" x 4-7/8" Thick
Cylinder Shaft Diameter: 2-1/2"
Tie Rod Diameter: 5"
Between Tie Rods: 22"
Floor To Top Of Bolster: 41"

EQUIPPED WITH:

Quick Upper Die Coupling
Universal Table
Lower Storage Cabinet With Doors
2-Hand No Tie Down Controller
Guarding For Ram
STI MiniSafe 4600 Series Light Curtains
FLR

CURRENT REPLACEMENT COST: $30,000

Loaded On Truck ........................... Toledo, OH
Photos & Manual Available
