FIN MACHINE COMPANY Fin Line   Our stock number: 45344

FIN MACHINE COMPANY Fin Line

Click on picture below for larger version
FIN MACHINE COMPANY Fin LineFIN MACHINE COMPANY Fin LineFIN MACHINE COMPANY Fin LineFIN MACHINE COMPANY Fin Line

AGE: 1995

SPECIFICATIONS:

Machine Description: These machines make corrugated type fins

used in the manufacture of brazed type

aluminum coils.

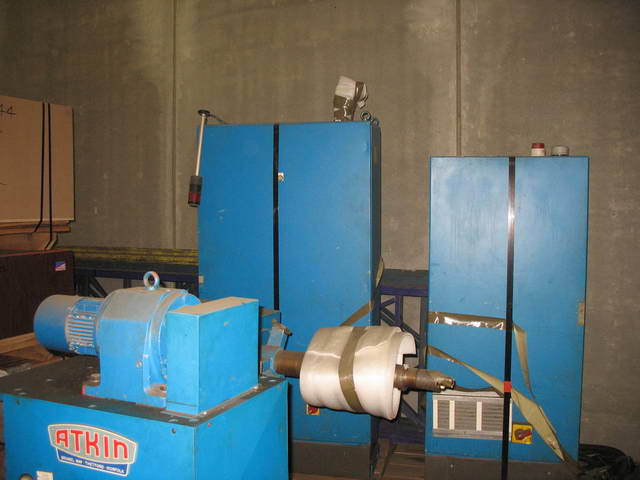

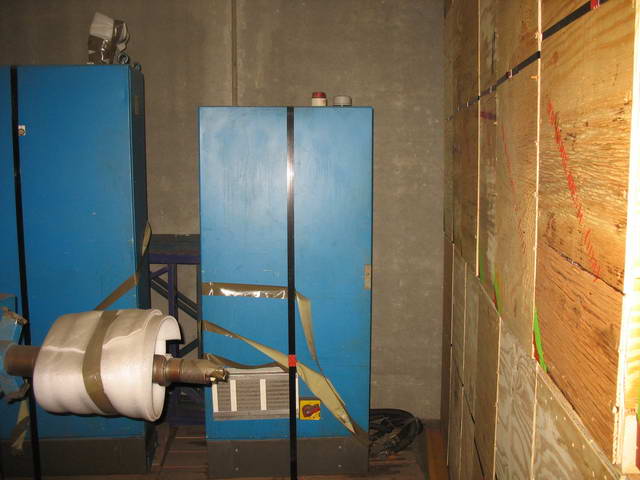

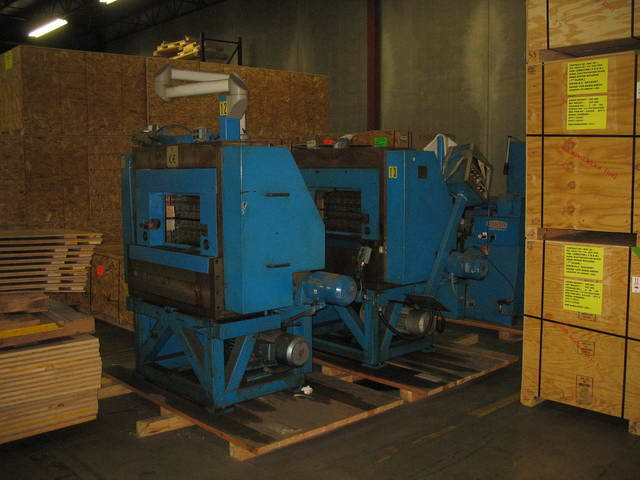

General Description: Line includes ATKIN Uncoiler, Complete Fin

Machine, Stock Lubrication System &

Stacker.
Process Description: Fin stock feeds off an uncoiler, in press

fin is formed into a corrugated shape

then placed between a "parting" (solid)

sheets of approx. 0.040" material that

has a layer of solder on it (approx.

0.0015 thickness) & placed in a vacuum

brazing furnace. The accordion layers can

be multiplied as required. Headers are

then welded to the ends of the channels

so that flow of either water or air is in

one direction (such as R to L) throught

the coil.
Line Speed: 11 RPM
Max. Fin Size Capacity: 450mm W x 1500 Kg
Stack Height: 48" to 52" High
Tooling Available

Electrical: 415V, 3 PH, 50 Hz Now Transformer Converted to 480 V

3 PH, 60 Hz

At Location..................................................
