SPECIFICATIONS:
Age: 1995 Serial Number: 3400
Cutting Capacity: Round: 1" to 5" (25mm to 125mm)
Square: 3-3/4" (95mm)
Rectangle: 2" x 4" (50mm x 115mm)
Wall Thickness, Max.: .165" (4.2mm)
Cut Tube Lengths: 4" to 79" (100mm to 2000mm) Programmable
Cut Tolerance: +/- .015
Cycle Rate, Max.: 2200 Per Hour
Feed Roll Speed: 300 FPM (100 M/Min)

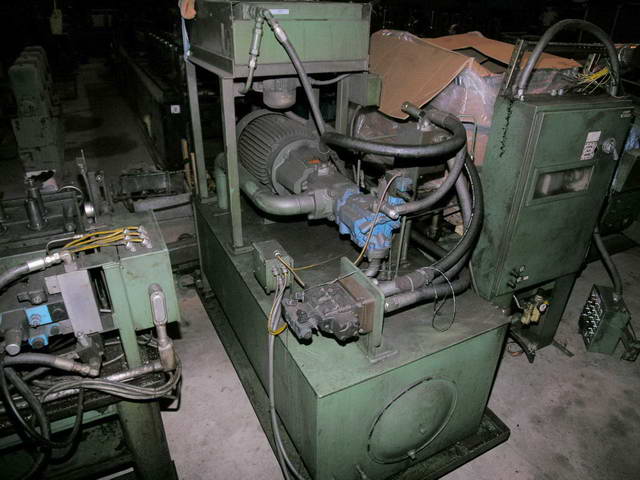

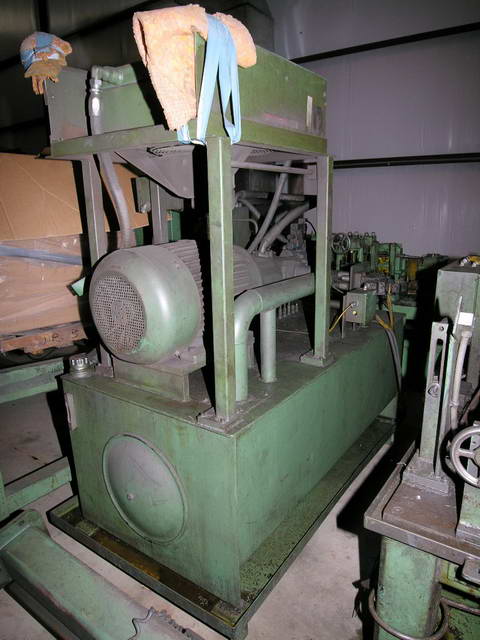

Hydraulic Unit: 50 HP, 240/460 FAC, 60 Hz
Machine Weight: 9,000 Lbs. (4,050 kg)
Microprocessor Controlled
BURRMASTER Model 970 Wire Brush Deburring Machine:
Age: 1995 Serial Number: 1553
Tube Diameter: 3/4" x 5" (19mm to 127mm)
Tube Shapes: 3-1/2" x 3-1/2" (90mm x 90mm)
Tube Length: 8" to 120" (203mm to 3048mm)
Brush: 36" (914mm) L x 16" or 12" (406mm or 304mm) Dia.
Machine Output, Max.: 2,500 Pieces Per Hour
Exit Conveyor: 10' (Approx.) Long
Controls: Allen-Bradley
Air Supply: 5 SCFM @ 80 PSI (.14158 cm)
Electrical: 460 VAC, 60 Hz
Brush Motors: 15 HP (11.1 kw)
Transfer Chain: 1.5 HP (1.1 kw)
At Location ........................... Toledo, OH
Photos Available
