200 Ton HEIM SSDC Press, 8" Str, 26" SH, 78" LR x 42" FB Bed, 50 - 70 SPM, 30 HP   Our stock number: 43834

200 Ton HEIM SSDC Press, 8 Str, 26 SH, 78 LR x 42 FB Bed, 50 - 70 SPM, 30 HP

Click on picture below for larger version
200 Ton HEIM SSDC Press, 8 Str, 26 SH, 78 LR x 42 FB Bed, 50 - 70 SPM, 30 HP200 Ton HEIM SSDC Press, 8 Str, 26 SH, 78 LR x 42 FB Bed, 50 - 70 SPM, 30 HP200 Ton HEIM SSDC Press, 8 Str, 26 SH, 78 LR x 42 FB Bed, 50 - 70 SPM, 30 HP

AGE: 1996

SPECIFICATIONS:

Stroke: 8"
Shut Height: 26"
Bed Area: 78" LR x 42" FB
Slide Area, T-Slotted: 78" LR x 30" FB
Slide Adjustment, Powered: 6"
Window Area: 22.5" Wide x 78" High
Bolster, T-Slotted: 6"
Strokes Per Minute: 50 to 70

EQUIPPED WITH:

Flush Floor Design
Hi-Pro Air Clutch
Flywheel Brake
Recirculating Lube System
(2) Air Counterbalances
Magnetic Reversing Starter
Herringbone Gearing
Electric Stroke Counter
Slide Adjustment Indicator

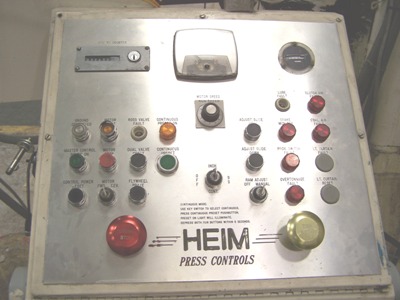

PLC Control, Heim Palm Station

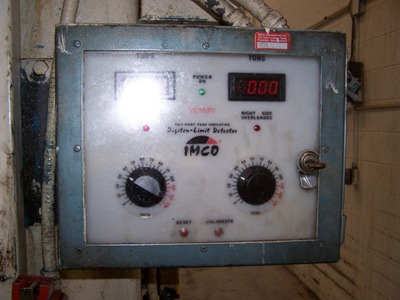

IMCO Tonnage Monitor
Vibro Dynamics Isolation Mounts #10M1200-1M

NOTE: New Cost - $157,000

MOTOR DATA: 30 HP, 460/3/60

OVERALL DIMENSIONS (Approx.): 95" LR x 63" FB x 13'4" H
WEIGHT (Approx.): 27,000 Lbs.

At Location ........................... Michigan
Photos Available
