3", EAGLE, No. TC-80, 1978,   Our stock number: 43691

3 , EAGLE, No. TC-80, 1978,

Click on picture below for larger version
3 , EAGLE, No. TC-80, 1978,3 , EAGLE, No. TC-80, 1978,3 , EAGLE, No. TC-80, 1978,3 , EAGLE, No. TC-80, 1978,
3 , EAGLE, No. TC-80, 1978,3 , EAGLE, No. TC-80, 1978,3 , EAGLE, No. TC-80, 1978,3 , EAGLE, No. TC-80, 1978,

AGE: 1978

SPECIFICATIONS:

NOTE: Machine set up to use quick change tooling, utilizing a

knife style cut to square end, trim, angle cut, radius end cut,
and radius scallop, as well as notch, pierce, and scarf weld bead

with the proper tooling. Machine is set-up to cut 14mm diameter

on a 22 degree diagonal.

Capacity: ........... 3" Max Tube Dia. x .078" Wall Thickness
Ram Stroke: ......... 2" - 9"
Vise Stroke: ........ 1" - 3-3/4"
Die Size: ........... 6" W x 7-1/2" L x 7" Min. Hgt.

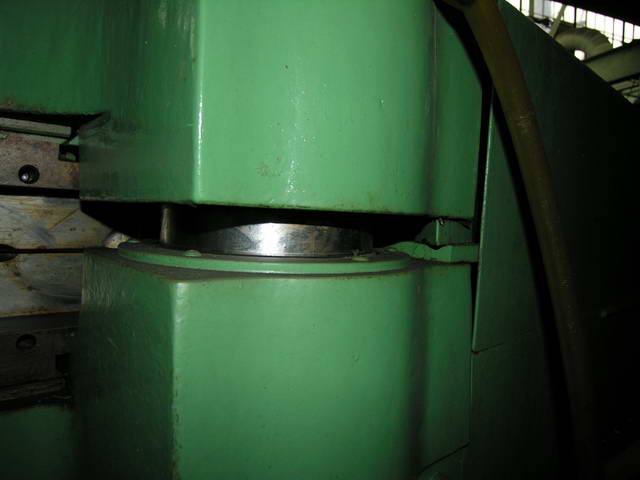

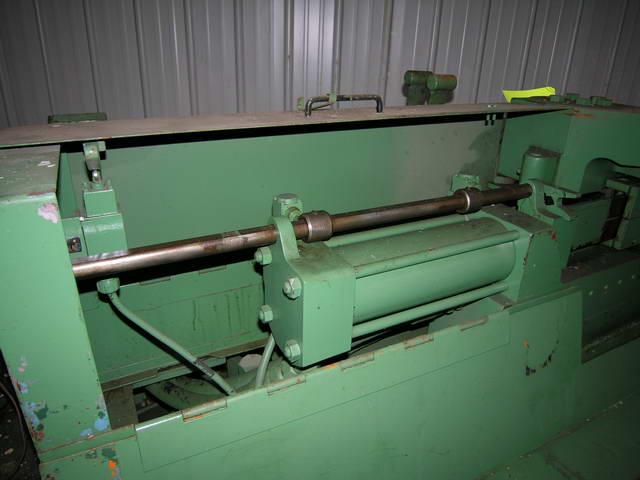

EQUIPPED WITH: Hydraulic Operation on Shear Knife
Adjustable Stroke

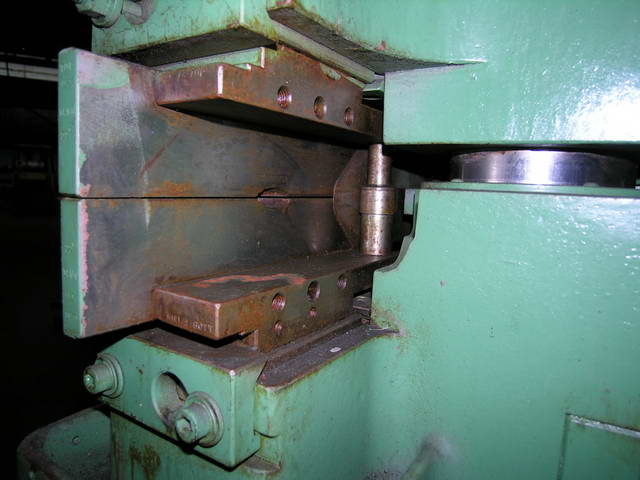

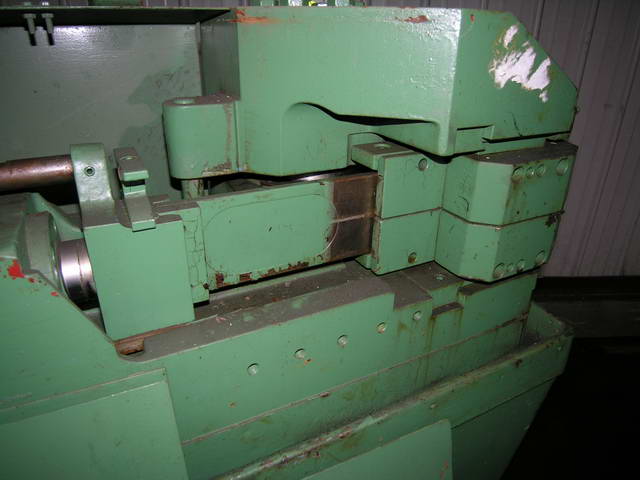

Hydraulically Operated Vertical Clamping

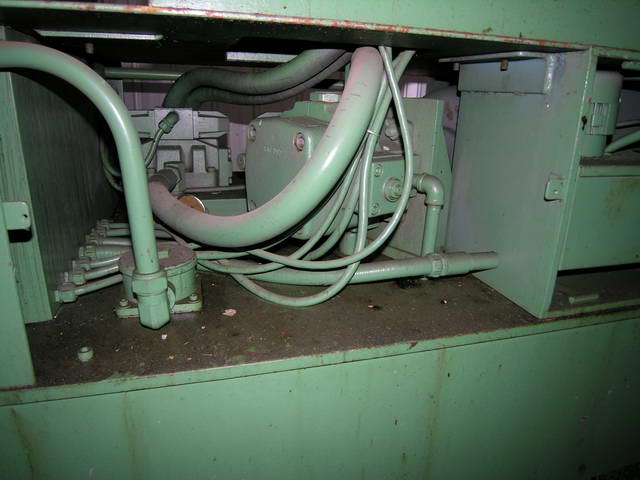

Self-Contained Hydraulics

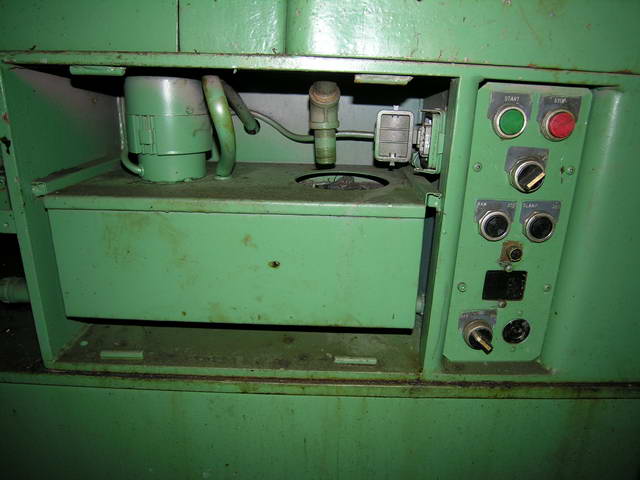

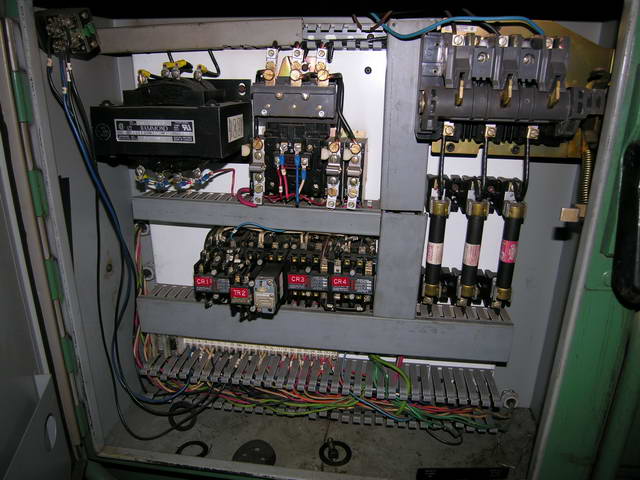

Control Panel and Pedestal Control
Hydraulic After Cooler
Water Cooled Hydraulics

MOTOR DATA: 15 HP, 420/50/3

OVERALL DIMENSIONS: 5'10" FB x 3'6" Wide x 4'5" Height
WEIGHT: 4000 Lbs CONDITION: Very Good

Loaded on Truck..............................Toledo, OH
*PHOTO AVAILABLE
