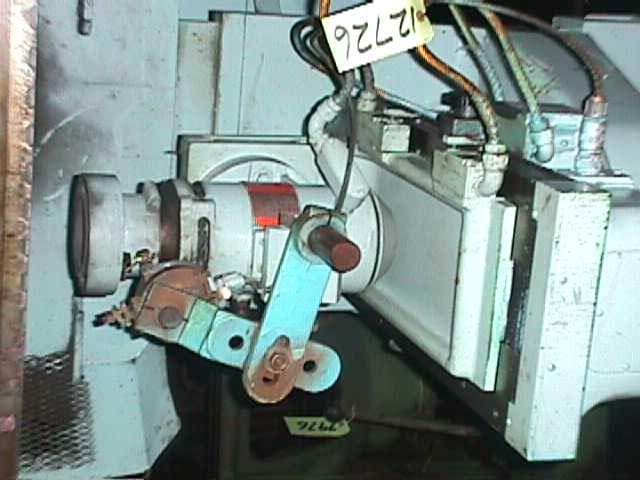

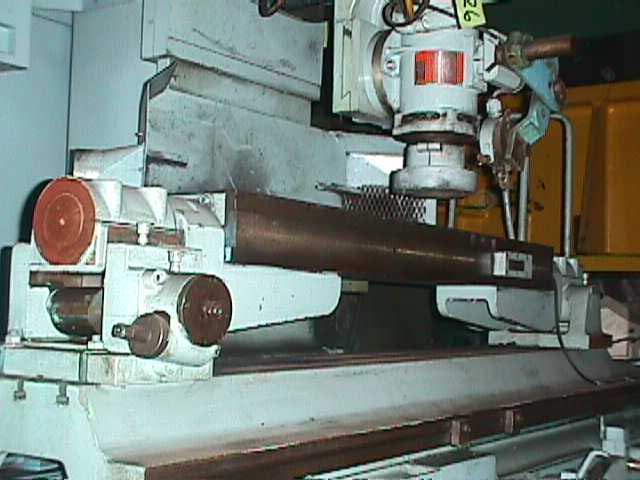

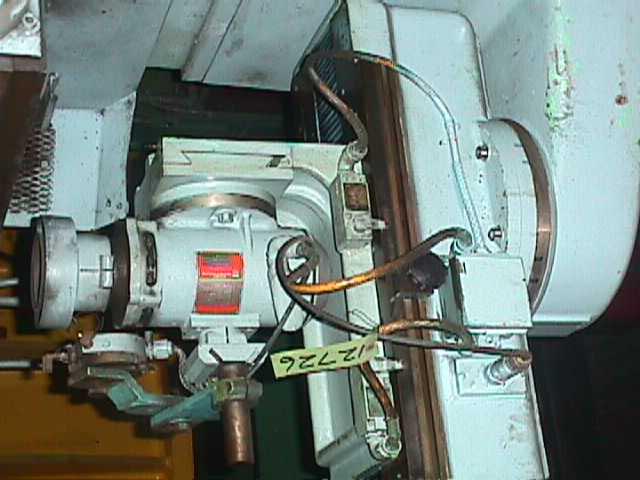

48" THOMPSON #4EA, 48" x 6" Grinding, 72" x 9" Work Table, 1.3 HP Spdl, 3 HP Hyd   Our stock number: 30172

48 THOMPSON #4EA, 48 x 6 Grinding, 72 x 9 Work Table, 1.3 HP Spdl, 3 HP Hyd

Click on picture below for larger version
48 THOMPSON #4EA, 48 x 6 Grinding, 72 x 9 Work Table, 1.3 HP Spdl, 3 HP Hyd48 THOMPSON #4EA, 48 x 6 Grinding, 72 x 9 Work Table, 1.3 HP Spdl, 3 HP Hyd48 THOMPSON #4EA, 48 x 6 Grinding, 72 x 9 Work Table, 1.3 HP Spdl, 3 HP Hyd48 THOMPSON #4EA, 48 x 6 Grinding, 72 x 9 Work Table, 1.3 HP Spdl, 3 HP Hyd

AGE: 1980

SPECIFICATIONS:

Grinding Capacity: 48" x 6"
Work Table Area: 72" x 9"
Electromagnetic Chuck Size: 48" x 7" x 4-1/2"
Top of Work Table to Top of Chuck: 10-1/2"
Longitudinal Table Travel: 60"
Capacity, Cross Travel x Tooth Angle: 6" x 30 Degrees
Vertical Capacity Under Cup Wheel: 12"
Vertical Travel of Wheel Head: 13"
Spindle Speed: 3600 RPM
Wheel Head Traverse & Table Feed Range: 0 - 30 FPM
Grinding Cup Wheel Size, Type 11: 5" x 1-3/4" x 1-1/4"

EQUIPPED WITH: Automatic Down Feed
Tilt & Swivel Electromagnetic Chuck w/Neutrofier
O.S. Walker Automatic Release Microprocessor

Chuck Control
Coolant
Pendant Control

Motor Data: 1.3 HP Spindle Motor
3 HP Hydraulic Unit

Loaded on Truck............Toledo, (Dorr St. Whse.) OH
**PHOTO & CATALOGUE INFO AVAILABLE
