8' x 19" GIDDINGS & LEWIS, Feeds, Threading, 20 HP, 1970   Our stock number: 29738

8' x 19 GIDDINGS & LEWIS, Feeds, Threading, 20 HP, 1970

Click on picture below for larger version

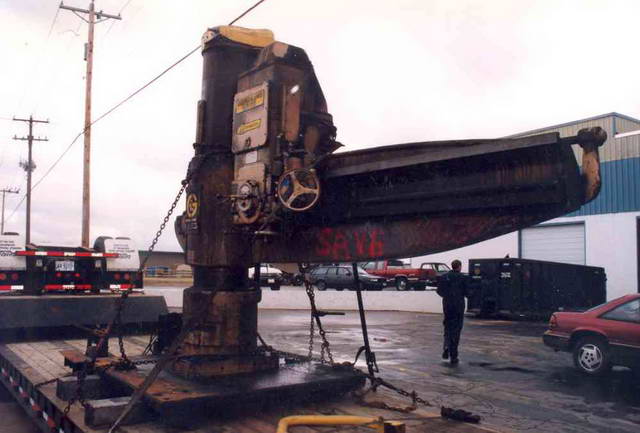

8' x 19 GIDDINGS & LEWIS, Feeds, Threading, 20 HP, 1970

AGE: 1970

SPECIFICATIONS:

Spindle Speeds: (18) 75 - 1000 RPM
Spindle Feeds: (18) .004 - .125 IPR
Threads: (6) 8, 11-1/2, 14, 18, 20, 27 TPI
Spindle Travel: 20"
Diameter of Spindle: 4"
Taper in Spindle: #6MT
Distance Spindle to Column: 12" Min., 96" Max.
Traverse of Head on Arm: 79"
Traverse of Arm on Column: 42"

EQUIPPED WITH: Power Head Traverse
Power Elevation
Power Clamping

Note: This is less the base, this was originally mounted to the

floor.

Motor Data: 20 HP Main Motor


Loaded on Truck...........................Toledo Suburb - #2
